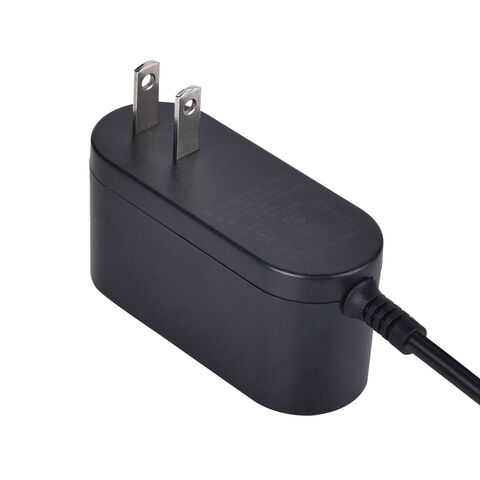

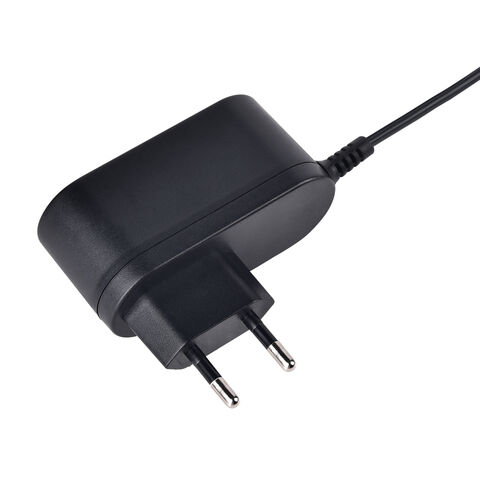

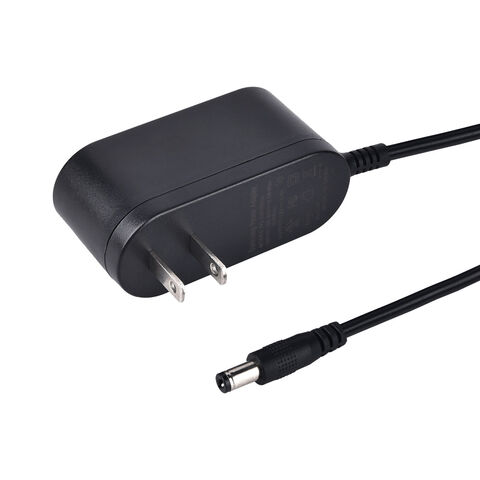

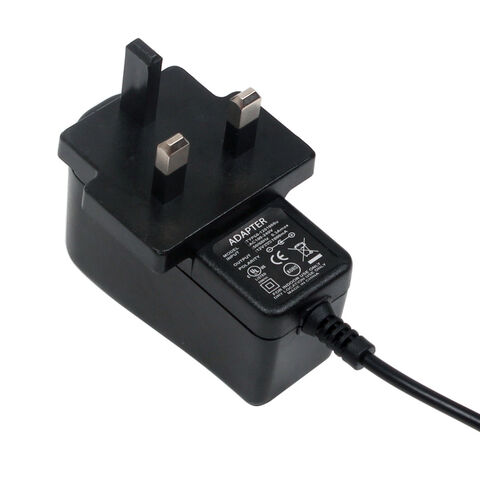

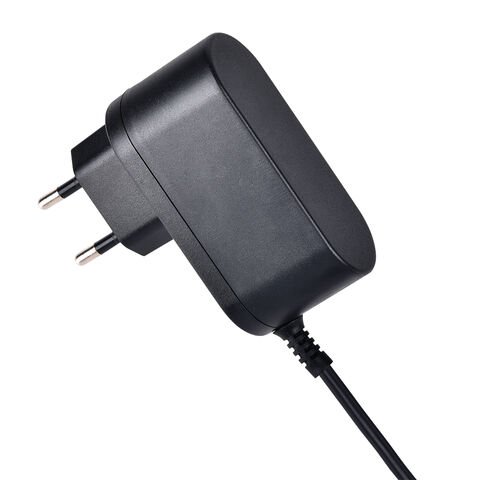

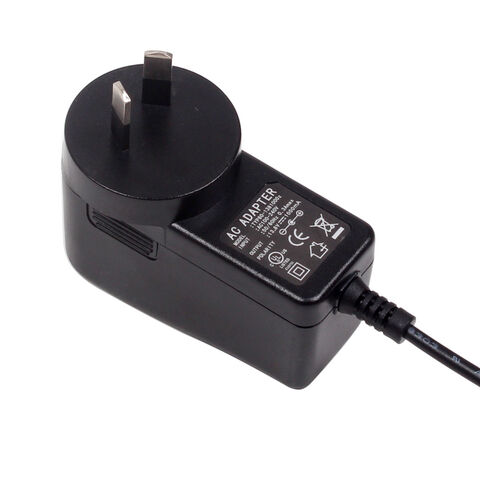

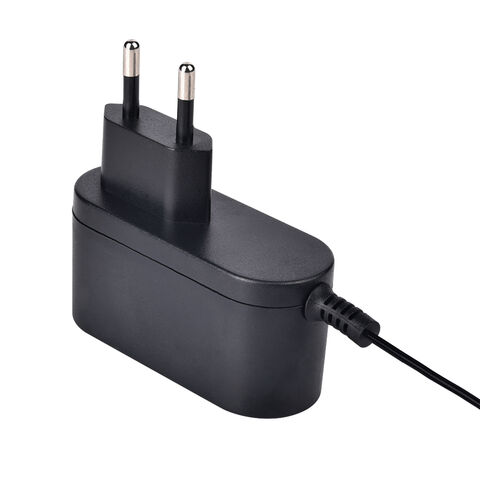

UKCA UL CE listed adapter 9v 12v 24v 1a 1.5a 2a 3a 5a dc power adaptor european US wall model ac to dc switching power supply
- US$ 1.5 - 3.8
- Min. Order:1000 Pieces
Product Attribute
Usage:
Game Player, Laptop, Digital Camera, Mobile Phone, Display, Switching, Tablet, Transformer
Plug Type:
EU, AU, US, EU/AU/UK/US, UK
Output Type:
AC or DC, AC, DC
Lead Time: 12 – 15 Days
Important: This supplier does not currently advertise comprehensive company & product information with Global Sources. We cannot guarantee the accuracy of company and product information.
Related Products from Verified Suppliers
-
Wholesale 230W 20V 11.5A AC DC Desktop Power AdapterUS$ 37.501000 Units (MOQ) - Mini USB Wifi Adapter 300Mbps Band 2.4Ghz USB WiFi Network Adapter w/Antenna 802.11NUS$ 4.31 - 5.4310 Units (MOQ)
- GaN 65W Fast Charging Smarter Power Supply PD Charger For LaptopUS$ 8.20 - 9.851000 Pieces (MOQ)
- Desktop Power Adapter with Various Voltage Options and PortsUS$ 11.50200 Pieces (MOQ)
- 70W Ultra-slim Universal Adapter with 15mm ThicknessUS$ 23.00 - 24.001000 Units (MOQ)
- Somostel bz31 11 In 1 Multipart adapter stationUS$ 13.0050 Pieces (MOQ)
- Vina Newest Wall Chargers For Macbook Laptop Adapter Charge Complete 20W 45 Watt Usb Port C Gan Pd Univasal Chargers Port PhoneUS$ 6.40 - 6.601000 Pieces (MOQ)
- Pd Wall ChargerUS$ 12.001000 Pieces (MOQ)
- AC Power Electric Car Charger - Fast and Efficient EV Charging Station for Home Use, Energy Efficient and User-Friendly DesignUS$ 76.30 - 86.701 Boxes (MOQ)
- 30W Dimming Power Supply for Smart Hotel Glass Film, High Efficiency, AC Output,CE standard certificationUS$ 16.50 - 19.5040 Pieces (MOQ)
- Single Voltage Plug-in AC/DC Adapter with 500mA Maximum LoadUS$ 3.002000 Pieces (MOQ)
- Customizable 20W/35W/40W GaN PD Fast Charger Universal Portable Multifunctional Travel Plug with Multi-Power OptionsUS$ 10.40 - 11.301000 Pieces (MOQ)
Sample Policy
We offer free samples, with shipping and taxes paid by the buyer
Product information
- UKCA UL CE listed adapter 9v 12v 24v 1a 1.5a 2a 3a 5a dc power adaptor european US wall model ac to dc switching power supply .
- have UL CE with EN60950, 61558, 62368, 60601 safety standards .
- fast delivery for emergency order ,7-10 days after confirmed order .
- 15 years in designing and production .
- long warranty ,3 years after shipment .
- accept OED & ODM projects ,
- All certificates owned ,such as UL/CUL FCC TUV CE ROHS CB RCM .
- 1500 M^2 working room with 5 production lines and 80 workers .
- More than 300,000pcs prodcution capacity per month .
- Only produce high quality products ,but competitive price .
- 100-240V AC input 50/60HZ, DC 12V 1a / 1Amp output, 12 Watt max wattage,12v 1a power adapter output
- Convert 100-240V AC to 12V DC, widely use fo LED strip lights, LED string, wireless routers, ADSL Cats, HUB, switch, security camera, Audio/Video power supply
- Please be kindly informed that the total wattage of your device should not exceed the max wattage（12 Watt) of this adapter
- 12V 1A or 1Amp 12W power supply with 5ft power cord, 5.5/2.1 DC female barrel connector ( optional )
- 3 year warranty, and our seller support team always stand behind our products in any way, so please contact us for solution if you have any quality problems
| Product Size | 61*26*33 mm ( L / W / H ) |
| Input Voltage | 86Vac～264Vac |
| Input Frequency | 47Hz～63Hz |
| Input Current | 0.5A(Max) |
| Inrush Current | 50A |
| Surge Testing | 2KV ( optional ) |
| High Voltage testing | 3KV |
| Working Efficiency | 83% Level VI |
| DC Output Voltage | 12v optional |
| DC Output Current | 1a optional |
| DC Output Power | 12w optional |
| Ripple and Noise | < 80mv |
| Turn On Delay Time | ≤3S (AC:240V and full load) |
| DC cable length | 1.2M 24AWG and 2464 Type wire ( optional ) |
| DC connector | 5.5*2.1/2.5*12mm striaght type ( optional ) |
| Protection | short / Over current protection, over temperature protection . over voltage protection |
| Leakage Current | < 1 mA |
| Operating Temperature Range | 0℃--+55℃ |
| Storage Temperature | -20℃--+85℃ |
- More Certificates can be gave you after inquiry .
Before promotion,we will do lots of testing as below .
- EMC & EMI testing .
- Reliable burning testing continued with half month .
- Trial production with full testing .
- QC report with analyzation for mass production improvement .
Before the step of Plug In

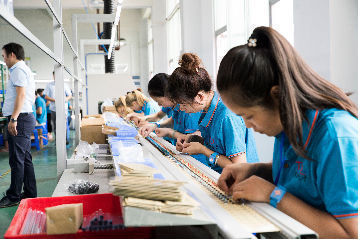

- all materials will be inspected according to Bom
- Wave Solder .
- Use high quality tin with ROHS standard .
Before assemble step .

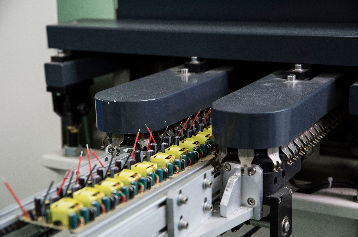

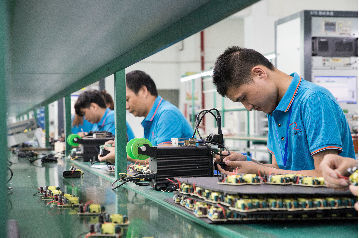

- Each PCB will be tested by loading machine .
- Focus components will be fixed by Silica gel.
- self-adhesive glue in Plastic case to aviod the tin beads.

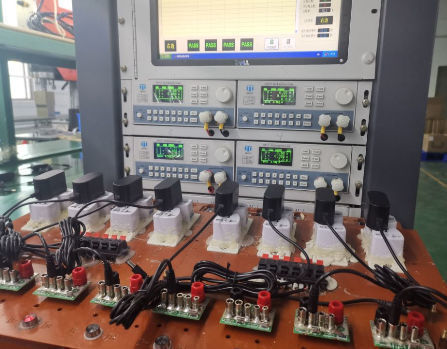

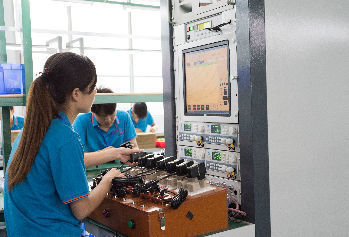

- Each unit will be tested by ATE,the terms as below.
- Unloading & full loading testing .
- Working efficiency rate ,3kv ac testing .
- Noise & Ripple testing .

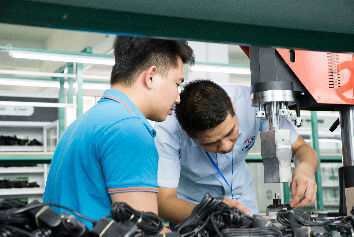

- All of our products welded by Ultrasonic machine.
- 26k machine and high quality ultransonic mold.

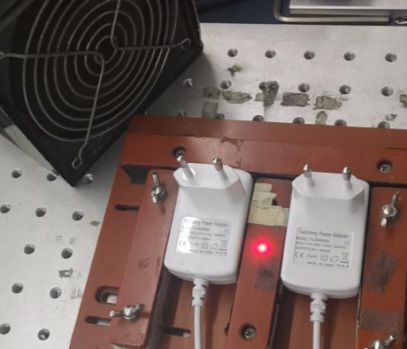

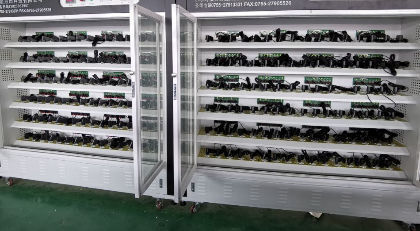

- We make Burning testing after Ultrasonic Welding .
- 5 machines ,1500pcs postion for continued testing.
- Each unit will be with unloading & full loading testing again。
- The testing items is the same
- The label will be carved by laser machine .
- customers logo welcomed

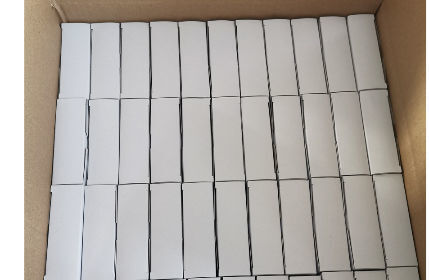

The package solution as below .
- Use white box for each unit,cost will high .
- Use PE bag for each unit ,it's cheap .
- Use the knife card inside .

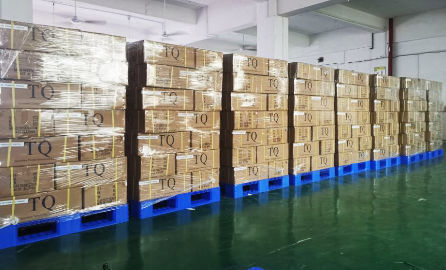

- Each carton box will have TQ logo .
- Each carton box will be packed with # belt.
- Customers can requested pallet for shipment.
- Customers can requested the ODM carton box .
Shipping Information
- FOB Port: China (Mainland)
- Lead Time: 12–15 Days
- Weight Per Unit: 0.1 Kilograms
- Dimensions Per Unit: 8.0 x 4.0 x 8.0 Centimeters
- US HTS Code: 8504.40.19 90
- Units per Export Carton: 164.0
- Export Carton Dimensions: 39.0 x 31.0 x 28.0 Inches
- Export Carton Weight: 1.0 Kilograms
