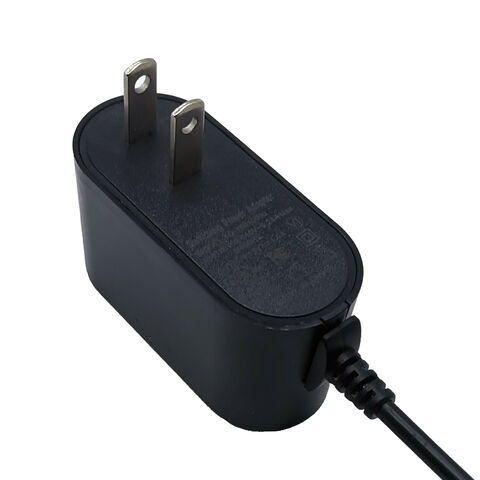

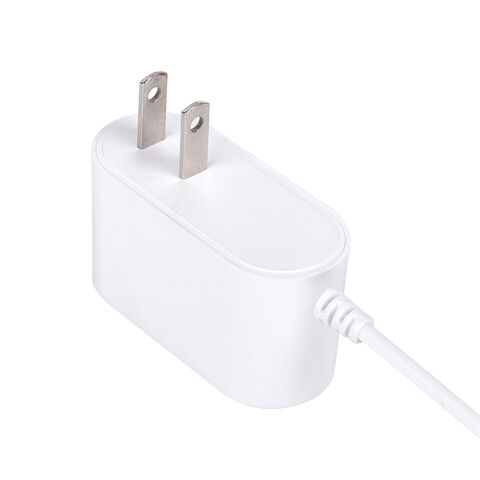

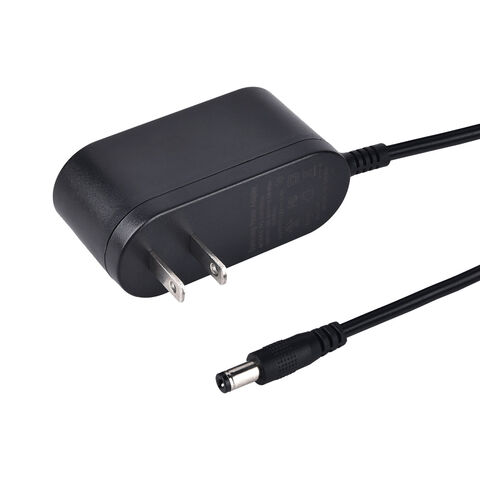

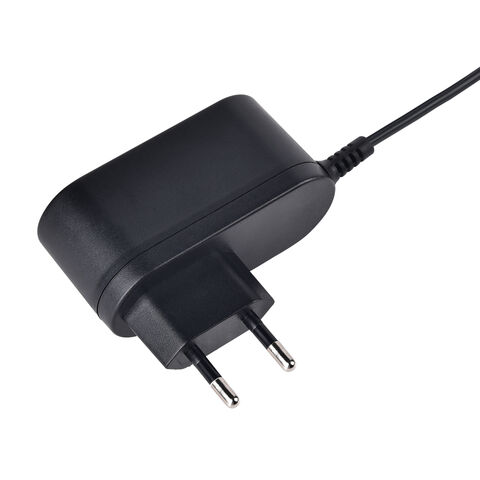

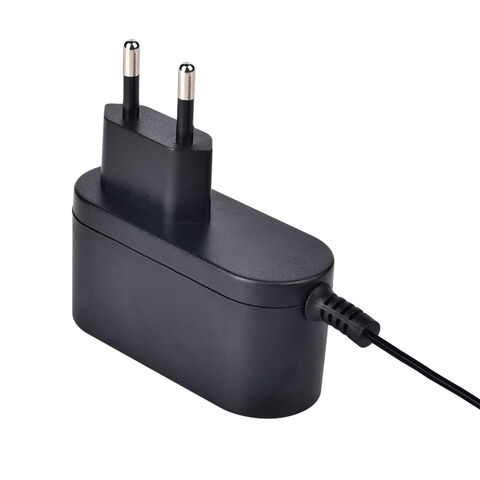

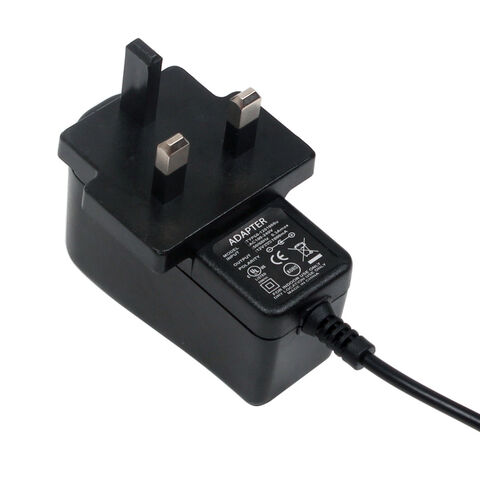

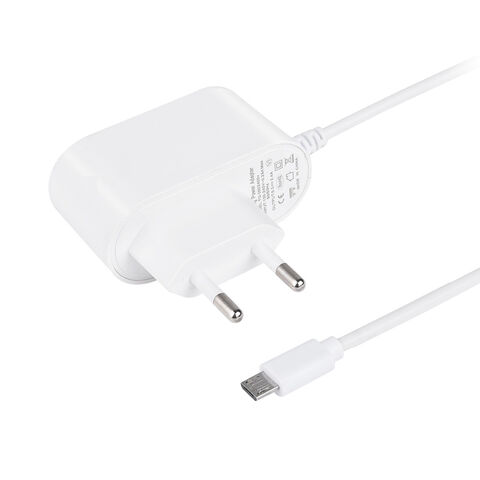

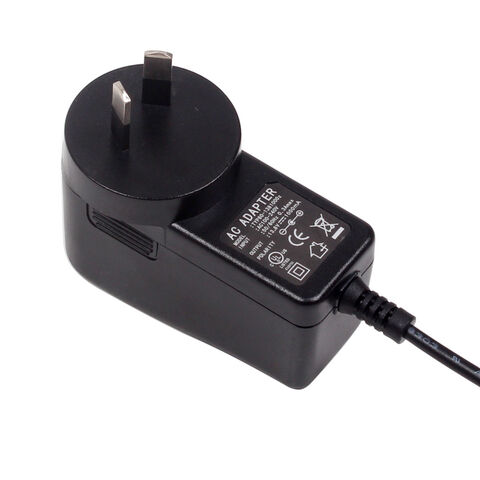

UL CE 5v 2a Power Adapter 2a adaptor AC to DC switching wall amount 5 Volt 2Amp Power Supply OEM ODM
- US$ 1.5 - 1.7
- Min. Order:1000 Pieces
Product Attribute
Application:
Commercial, Electronic, General-purpose, Home, Industrial, Power, Residential, Smart home, Travel, Universal, Medical adapter
Plug Type:
AU, EU, EU/AU/UK/US, UK, US
Lead Time: 12 – 15 Days
Important: This supplier does not currently advertise comprehensive company & product information with Global Sources. We cannot guarantee the accuracy of company and product information.
Related Products from Verified Suppliers
-
Usb-c power adapter QC 3.0 PD fast charger Type c usb wall charger for mobile phoneUS$ 1.573000 Pieces (MOQ) - Manufacturer 12W customized design high performance wall-mounted power adapter, compliant with energy VIUS$ 1.65 - 1.85500 Pieces (MOQ)
- 24W 12V 2A power supply UK Plug UKCA for home safety Wireless device IPTV camera convertor speaker AC/DC adapterUS$ 2.70 - 2.801000 Pieces (MOQ)
- Wholesale OEM ODM 24V 3A 72W CE ROHS UL AC/DC switching adapters，power adaptorUS$ 6.69500 Pieces (MOQ)
- Universal Travel Adapter, Good for Promotional Purposes
- Plug-in Switching Power Adapter with 6 Detachable PlugsUS$ 4.302000 Pieces (MOQ)
- 5V 2A AC DC Switching Power adapters Power Supply with Australian plug with RCM and C-tick approvalUS$ 1.79 - 2.151000 Pieces (MOQ)
- ODM 48W 65W 48V 1.35A 36V 1.8A 24V 2.7A 12V 5A Laptop Charger For Cordless vacuum cleaner with C6 C8 C14,CE UK PSE KC SAA UL CBUS$ 4.88 - 5.00500 Units (MOQ)
- 12V DC Output Voltage, with FR4 Board and Level VI Efficiency500 Pieces (MOQ)
- UL power supply 12W 12V 1A 1000MA 1 AMP switching power AC/DC adapter with US approvalsUS$ 1.65 - 2.103000 Pieces (MOQ)
- Manufacturers sell AC to DC 12V 2A plug power adapter, 5.5mm*2.1mm interface cable length 1.5m, black with indicatorUS$ 1.20 - 1.29100 Pieces (MOQ)
- 12V 6.5A 90W AC/DC Switching Power Suppl, Desktop Type Power Adapter with 12 to 24V Output VoltageUS$ 13.00 - 14.00500 Pieces (MOQ)
Sample Policy
We offer free samples, with shipping and taxes paid by the buyer
Product information
- 5v 2a power adapter or 2Amp power supply ,the max output is 12w .
- have UL CE with EN60950, 61558, 62368, 60601 safety standards .
- fast delivery for emergency order ,7-10 days after confirmed order .
- 15 years in designing and production .
- long warranty ,3 years after shipment .
- accept OED & ODM projects ,
- More than 15 years experiences in the filed of power adapters and USB chargers .
- All certificates owned ,such as UL/CUL FCC TUV CE ROHS CB RCM .

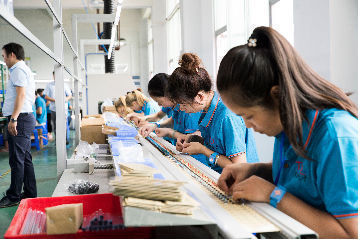

- 1500 M^2 working room with 5 production lines and 80 workers .
- More than 300,000pcs prodcution capacity per month .
- Only produce high quality products ,but competitive price .
- 100-240V AC input 50/60HZ, DC 5V 2a / 2Amp output, 12 Watt max wattage,5v 2a power adapter output
- Convert 100-240V AC to 5V DC, widely use for LED , wireless routers, Audio/Video power supply
- Please be kindly informed that the total wattage of your device should not exceed the max wattage of this adapter
- 5V 2A or 1A 12W power supply with 5ft power cord, 5.5/2.1 DC female barrel connector ( optional )
- 3 year warranty, and our seller support team always stand behind our products in any way, so please contact us for solution if you have any quality problems
| Product Size | 61*26*33 mm ( L / W / H ) |
| Input Voltage | 86Vac～264Vac |
| Input Frequency | 47Hz～63Hz |
| Input Current | 0.5A(Max) |
| Inrush Current | 50A |
| Surge Testing | 2KV ( optional ) |
| High Voltage testing | 3KV |
| Working Efficiency | 83% Level VI |
| DC Output Voltage | 5v |
| DC Output Current | 2a |
| DC Output Power | 10w max |
| Ripple and Noise | < 80mv |
| Turn On Delay Time | ≤3S (AC:240V and full load) |
| DC cable length | 1.2M 24AWG and 2464 Type wire ( optional ) |
| DC connector | 5.5*2.1/2.5*12mm striaght type ( optional ) |
| Protection | short / Over current protection, over temperature protection . over voltage protection |
| Leakage Current | < 1 mA |
| Operating Temperature Range | 0℃--+55℃ |
| Storage Temperature | -20℃--+85℃ |
- More Certificates can be gave you after inquiry .
Before promotion,we will do lots of testing as below .
- EMC & EMI testing .
- Reliable burning testing continued with half month .
- Trial production with full testing .
- QC report with analyzation for mass production improvement .
Before the step of Plug In
- all materials will be inspected according to Bom
- Wave Solder .
- Use high quality tin with ROHS standard .
Before assemble step .

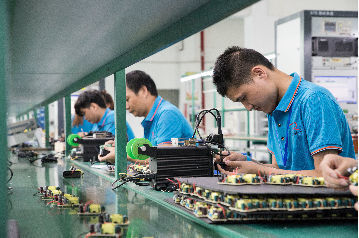

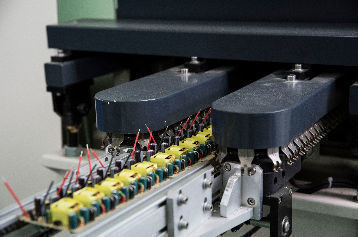

- Each PCB will be tested by loading machine .
- Focus components will be fixed by Silica gel.
- self-adhesive glue in Plastic case to aviod the tin beads.

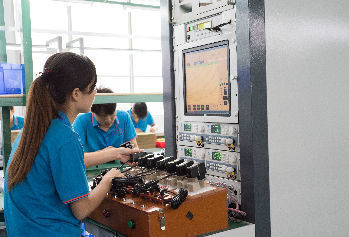

- Each unit will be tested by ATE,the terms as below.
- Unloading & full loading testing .
- Working efficiency rate ,3kv ac testing .
- Noise & Ripple testing .

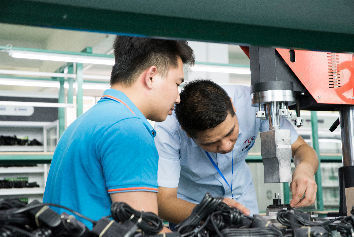

- All of our products welded by Ultrasonic machine.
- 26k machine and high quality ultransonic mold.

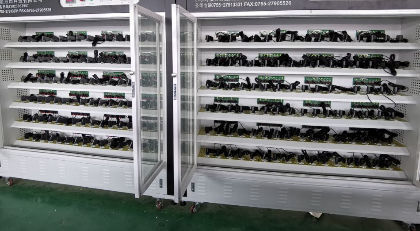

- We make Burning testing after Ultrasonic Welding .

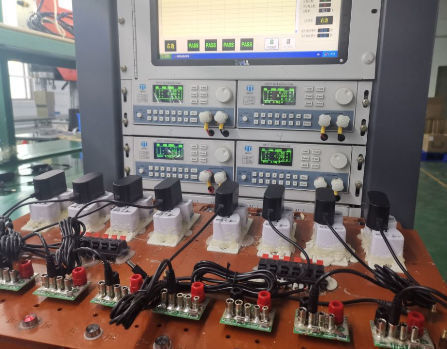

- 5 machines ,1500pcs postion for continued testing.
- Each unit will be with unloading & full loading testing again。
- The testing items is the same

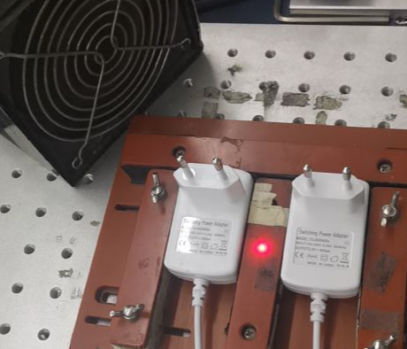

- The label will be carved by laser machine .
- customers logo welcomed
The package solution as below .

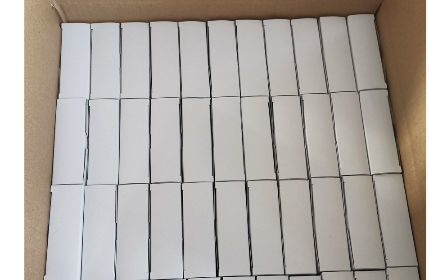

- Use white box for each unit,cost will high .
- Use PE bag for each unit ,it's cheap .
- Use the knife card inside .

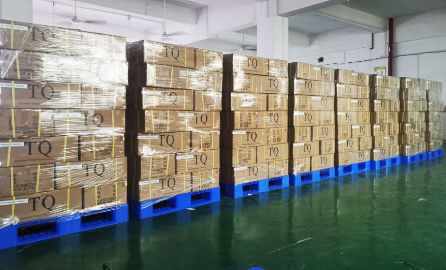

- Each carton box will have TQ logo .
- Each carton box will be packed with # belt.
- Customers can requested pallet for shipment.
- Customers can requested the ODM carton box .
Shipping Information
- FOB Port: China (Mainland)
- Lead Time: 12–15 Days
- Weight Per Unit: 0.1 Kilograms
- Dimensions Per Unit: 8.0 x 4.0 x 8.0 Centimeters
- US HTS Code: 8504.40.19 90
- Units per Export Carton: 164.0
- Export Carton Dimensions: 39.0 x 31.0 x 28.0 Inches
- Export Carton Weight: 1.0 Kilograms
