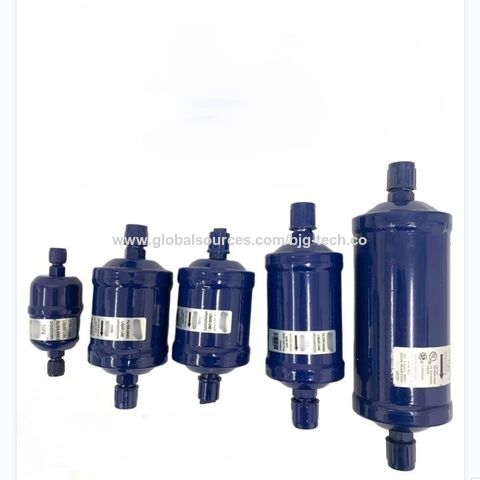

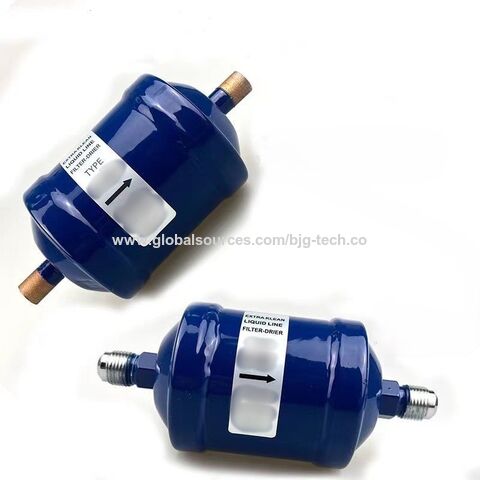

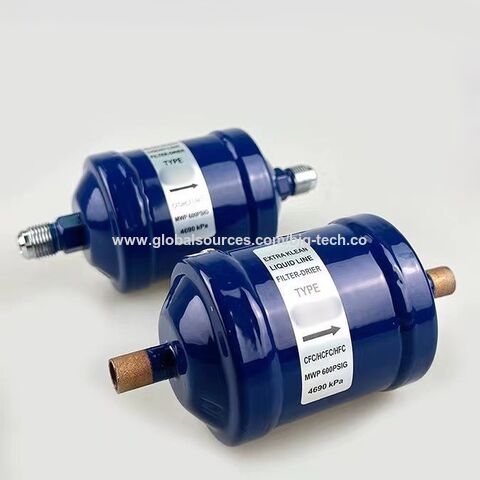

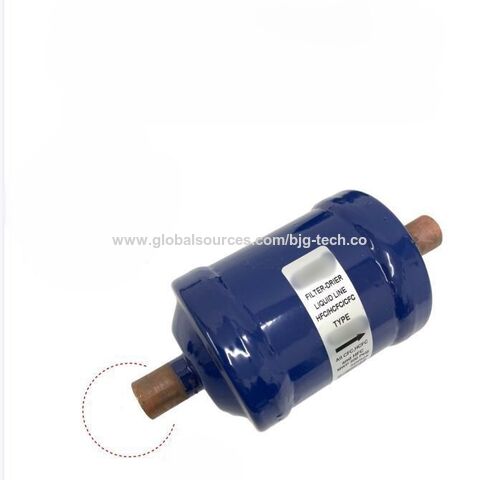

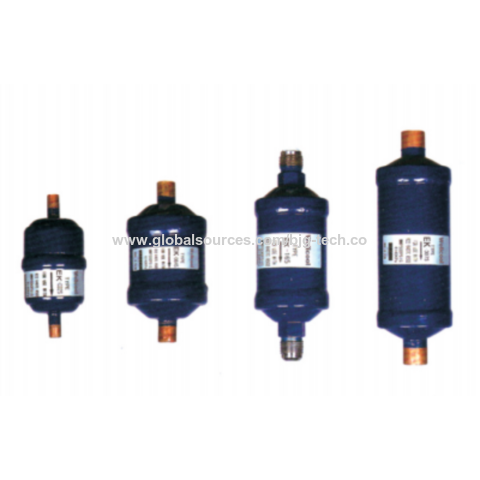

BJG-EK-032S Air conditioning and cold storage heat pump drying filter refrigerant filter screw welding chiller unit filter

  • US$ 6.43
  • Min. Order:≥50 Pieces
Add to Cart

Product Attribute

Component: Compressor, Condenser, Evaporator, Expansion valve
Application: Commercial, Home, Industrial
Material: Copper

Lead Time: 15 – 30 Days

Business Type: Exporter, Manufacturer, Buying Office, Agent, Distributor, Wholesaler

≤24 h

Response Time

100 to 149

Employees

Company/product Brochure

8441.30 KB

Secure Payments

Sample Policy

$9.89/Piece | 1–5 Pieces

Product information

Technical Specifications of EK Series Drier-Filters


Design & Functionality

  • Combines ‌drying‌ and ‌filtration‌ in a single unit, using liquid as the medium to prevent contaminants and solubles from entering critical parts of the refrigeration system, ensuring optimal system performance‌
  • Installed ‌before the expansion valve‌ in the refrigeration cycle to ensure clean, dry refrigerant flow. This prevents debris-induced blockages and moisture-induced ice formation‌

Key Features

  1. 20μm Compressed Particles at Outlet‌: Maximizes filtration surface area for enhanced impurity removal‌
  2. High Water Absorption & Acid Removal‌: Effectively eliminates moisture and acidic residues‌
  3. Corrosion-Resistant Coating‌: Epoxy resin spray treatment for durability in harsh environments‌
  4. Vibration-Resistant Steel Pipe Structure‌: Ensures stability under high-pressure conditions‌

Technical Parameters

  • Connection Type‌: Welded port‌
  • Port Size‌: 1/4″‌
  • Compatible Refrigerants‌: CFC, HCFC, HFC‌
  • Max Working Pressure‌: 42 Bar‌
View More

Shipping Information

  • FOB Port: Guangzhou
  • Lead Time: 15–30 Days
  • Weight Per Unit: 2.0 Kilograms
  • Dimensions Per Unit: 6.45 x 9.7 x 4.3 Centimeters
  • Units per Export Carton: 50.0
  • Export Carton Dimensions: 160.0 x 97.0 x 2100.0 Centimeters
  • Export Carton Weight: 3.0 Kilograms
