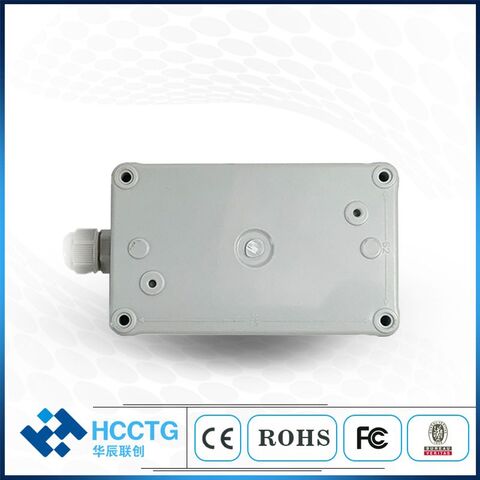

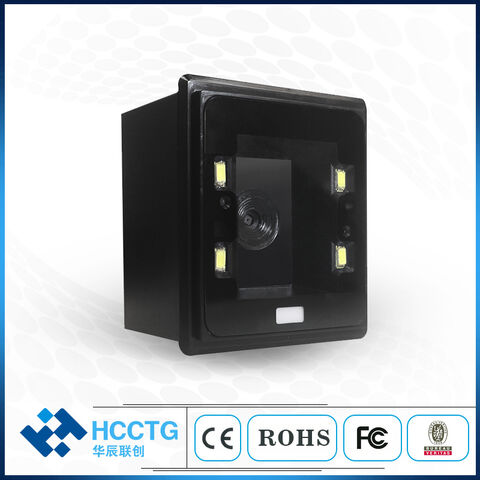

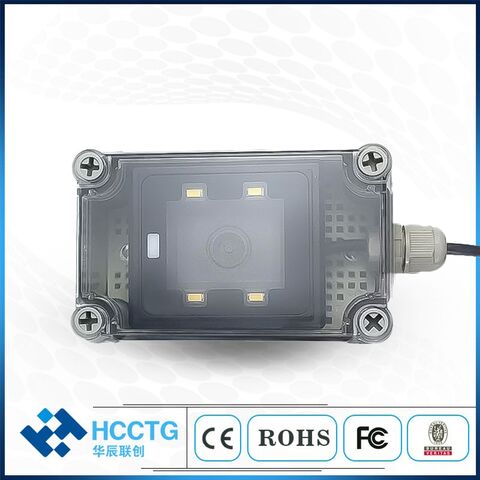

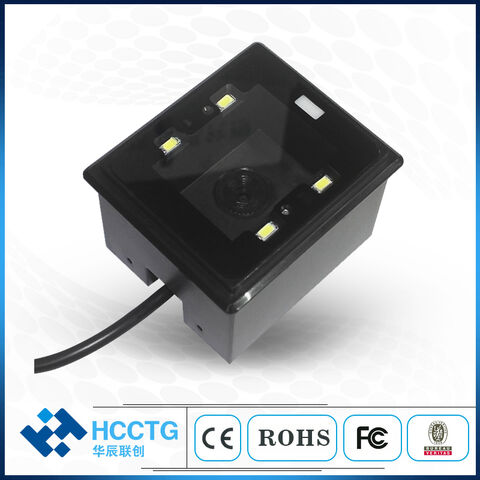

Waterproof 2D Embedded Barcode Aztec Code Scanner Module USB Interface HS-2003DP

US$ 58

3–49 Units
US$ 55

50–99 Units
US$ 54

100–499 Units
US$ 53

500–999 Units
US$ 52

≥1000 Units

Product Attribute

Feature: Auto sensor, Fast scanning, High definition, High resolution, Light

Application: Industrial, Inventory, Medical, Supermarket, Warehouse

Interface: USB, Rs232

Lead Time: 3 – 7 Days

Shenzhen HCC Technology Co. ,Ltd

Important: This supplier does not currently advertise comprehensive company & product information with Global Sources. We cannot guarantee the accuracy of company and product information.

Product information

General

HS-2003DP is a waterproof 2D embedded module with excellent performance. It can quickly identify all kinds of 1D/2D codes, and has excellent ability to read bar codes on mobile phone screen. Support a variety of data mode, compatible with Win XP, Win7, Win10, IOS, Android, INDUSTRIAL PC, server and other devices, plug and play, simple and convenient.

Performance parameters	Image Sensor	CMOS	DPI(W*H)	640px*480px
	Read Code System	1D	Code128/AIM128/EAN128/NL128,UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93,Code11,ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14,Industrial25,Matrix25,JapanMatrix25/NEC25,Standard25,DataLogic25,MSI-Plessey,Plessey,RSS-EXP/RSS_14/GS1Data, Telepen
		2D	AZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code,Micro QR, Hanxin Code, OCR, DOTCODE
	Accuracy	1D≥5mil		Typical
	Contrast Ratio	≥20%		1D EAN-13	5mil 35-55mm
	Sensitivity	tilt	±65°		13mil 15-135mm
		rotate	360°	2D QR Code	15mil 10-110mm
		deflection	±55°		30mil 10-200mm
	Field of view angle level：66.4° vertical：49.8° diagonal： 83°
	Data Interface	USB KBW ,USB CDC,USB HID POS,TTL, RS232
Electrical Parameters	Working Voltage	5VDC±5%
	Working Current	185mA±10%	Standby Current	160mA
Environmental Parameters	Working Temperature	-0℃~+50℃	Storage Temperature	-20℃~+60℃
	Relative Humidity	5% ~ 95%(No condensation)
	Screen Brightness	0~100000 Lux
	Protection Level	±16kV(Air discharge)		±8 kV(Direct discharge)
Physical Parameters	Communication Interface	USB、TTL 232、RS232
	Appearance Size	78.467.253.2mm		Weight	186.8g
Waterproof level	IP67
