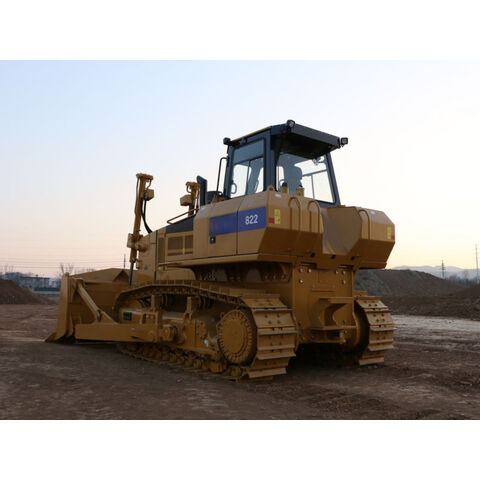

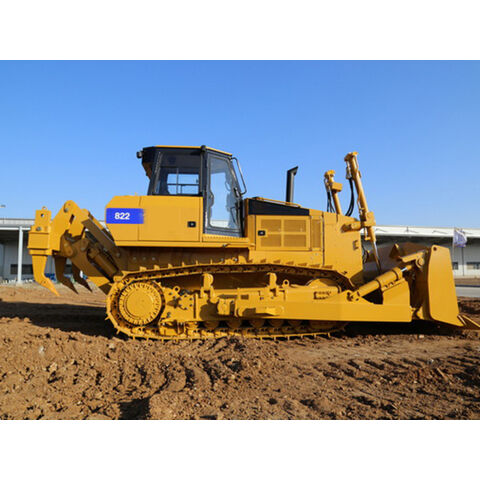

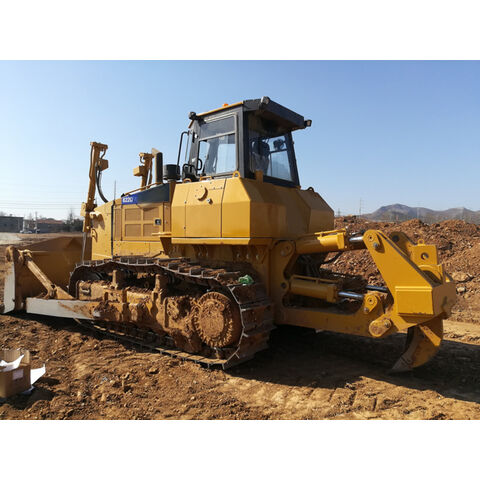

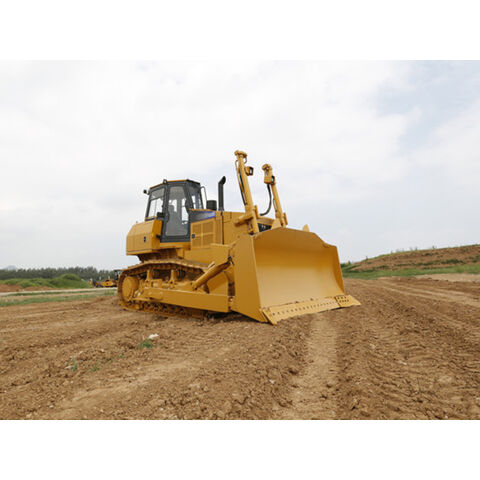

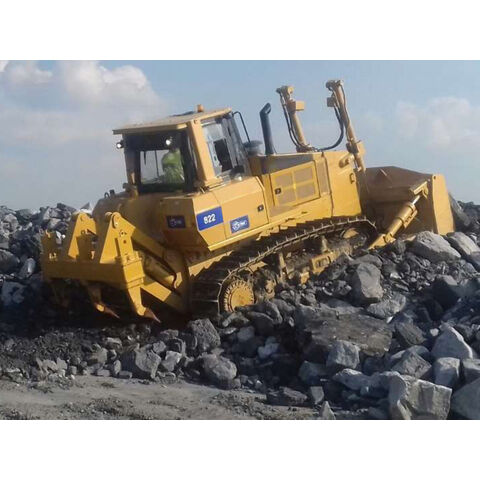

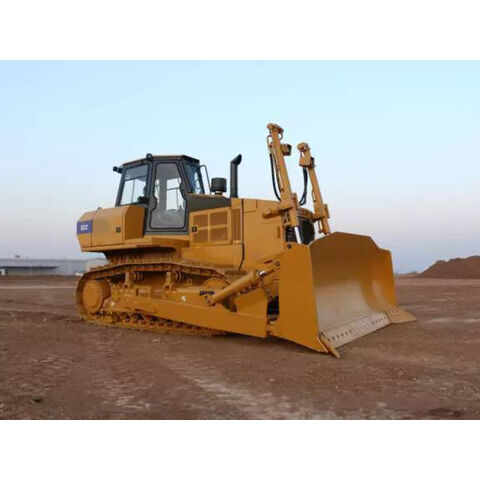

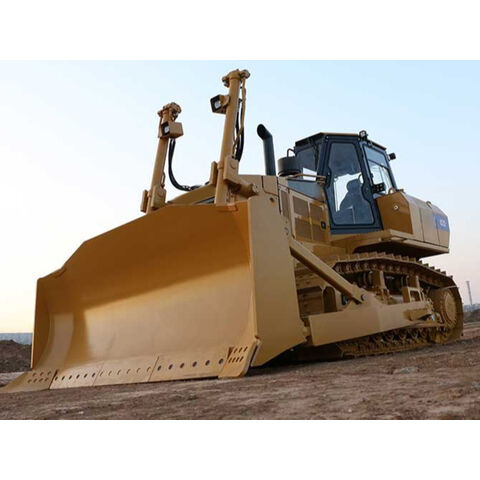

Hot sale chinese brand 822D 26ton large bulldozer with ripper and blade
US$ 45512
1–2 Unit
US$ 45100
≥3 Units
Product Attribute
Transmission:
Hydraulic- mechanical transmission, Hydraulic transmission, Power transmission
Load & Unload Mode:
Front discharge, Rear dump, Rotary
Walking Mode:
Crawler
Lead Time: 7 – 21 Days
Business Type: Exporter, Wholesaler, Trading Company, Consultant, Agent, Manufacturer, Distributor, , Online Seller, Buying Office, Retailer
24–48 h
Response Time
250 to 299
Employees
Company/product Brochure
10179.95 KB
Visit Store
Follow
Product information
Products Description
Proven Performance
- Boost productivity with fully hydrostatic transmission.
- Counter rotations, power turn and infinitely variable speed.
- Larger fuel tank capacity for extending operation hours.
- Better balance and stability with weight distribution with the center gravity optimization.
- Robust and more powerful mechanical controled engine delivers superior durability and excellent fuel efficiency.
Comfortable operation
- Spacious cab with easy-to-operate controls.
- Stylish design from the new F series.
- Six-way adjustable seat for quick customization according to the operator's preferences.
- Exceptional visibility for enhanced on-site awareness.
- 8'main display with a great view of machine settings and features.
Enhanced Reliability
- Dual-path, hydrostatic drive system with electronic control technology from a world-class supplier delivers industry-leading reliability.
- The mechanical engine with 7% increased power, offers classic durability and dependability.
- Final drive adopts a double-stage reduction combined spur gear and planetary structure for high transmission efficiency to ensure a longer lifespan.
- Machine structures are analyzed using Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to identify and reinforce high-stress areas.
- Equalizer bar and pivot shaft are pinned to the one-piece Track Roller Frame to increase ground clearance, along with three segmentation spring recoil system minimize impacts and prolong the undercarriage's life.
- Wet type multi-disc brake system, delivers exceptional reliability and high braking performance, even under challenging operating conditions.
Exceptional Reliability
- World class original pumps and motors.
- Blades with high tensile strength steel and strong box-section design.
- Reinforced structures, analyzed using Finite Element Analysis (FEA) .
- Final drive with double-stage reduction and wet type brake.
- Modular cooling system designed to endure -40°C to +48°C ambient temperatures.
Product Parameters
| Model | 822D | |||||
| Configuration | STD | LGP | CH | DS | WH | FR |
| Main Specifications | ||||||
|---|---|---|---|---|---|---|
| Operating Weight (w. SU blade, Ripper) | 26,520kg | 27,880kg | 27,280kg | 27,140kg | 28,560kg | 28,280kg |
| Ground Pressure (GB/T 30965) | 71.2kPa | 43.0kPa | 62.4kPa | 41.7kPa | 43.8kPa | 76.5kPa |
| Minimum Ground Clearance (Excludes Grouser Height) | 400mm | |||||
| Gradeability | 30° | |||||
| Engine | ||||||
| Engine Model | WD10G178E25 | |||||
| Advertised Power (ISO 14396) | 175kW | |||||
| Rated Speed | 1,800r/min | |||||
| Powertrain | ||||||
| Transmission Type | Dual-path, closed loop electronically controlled hydrostatic drive system | |||||
| Travel Speeds - Forward and Reverse | Infinitely variable speeds 0-10 km/h | |||||
| Steering and Brake | hydrostatic steering; wet,multi-disc brake | |||||
| Implement Hydraulic | ||||||
| Type | center close, pilot control | |||||
| System Pressure | 19MPa | |||||
| Pump Type | Gear pump | |||||
| Blades | ||||||
| Blade Type | SU/S | LGP S | Coal/U | LGP S | WH | Forestry |
| Blade Capacity (ISO 9246) | 6.4m³/5.8m³ | 5.5m³ | 9.2m³/7.5m³ | 5.5m³ | 12.7m³ | 8.7m³ |
| Blade Width (w/End Bit) | 3,660mm/3,800mm | 4,510mm | 3,900mm | 4,510mm | 4,510mm | 3,660mm |
| Blade Height | 11,520mm/1,510mm | 1,350mm | 1,620mm/1,420mm | 1,350mm | 1,945mm | 1,830mm |
| Blade Lifting Height | 1,140mm | 1,165mm | 1,140mm | 1,165mm | 1,165mm | 1,140mm |
| Blade Digging Depth | 570mm | 665mm | 570mm | 665mm | 665mm | 570mm |
| Blade Tilt Height (Middle Hole) | 540mm | 640mm | 550mm | 640mm | 640mm | 540mm |
| Blade Weight (w/o Push Arm) | 1,645kg | 2,085kg | 2,242kg | 2,085kg | 2,442kg | 2,050kg |
| Minimum Turning Radius | 4,215kg | 4,300kg | 4,500kg | 4,300kg | 4,300kg | 4,215kg |
Details Images
Exporting Cases
Product Packaging
Client Visit
Why choose us
FAQ
Shipping Information
- FOB Port: Shanghai
- Lead Time: 7–21 Days
- Weight Per Unit: 1434.0 Kilograms
- Dimensions Per Unit: 12.03 x 2.3 x 2.3 Meters
- US HTS Code: 8429.11.10 00
- Units per Export Carton: 1.0
- Export Carton Dimensions: 1203.0 x 2.3 x 2.6 Meters
- Export Carton Weight: 200.0 Kilograms
