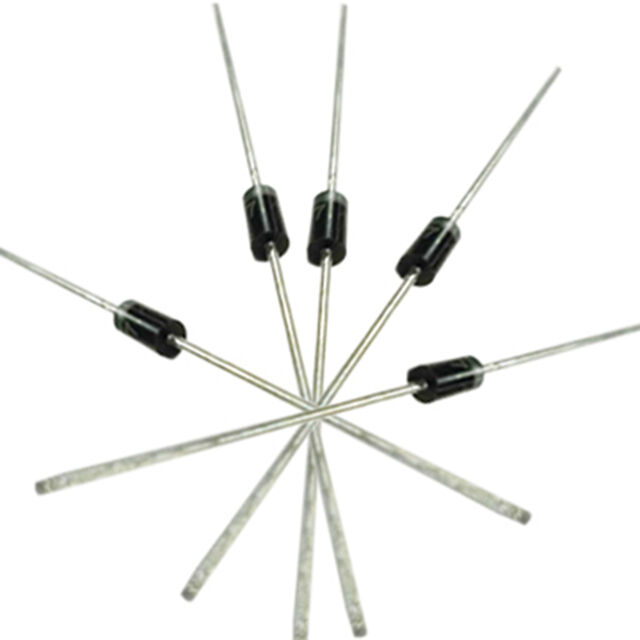

1N4007 Rectifier Diode

MECHANICAL DATA
•Case: Transfer molded plastic
•Epoxy: UL94V-0 rate flame retardant.
•Polarity: Color band denotes cathode end.
•Lead: Plated axial lead, solderable per MIL-STD-202E
Method 208C
•Mounting position: Any
•Weight:0.012 ounce, 0.33grames
MAXIMUM RATINGES AND ELECTRICAL CHARACTER
•Ratings at 25°C ambient temperature unless otherwise specified
•Single phase, half wave, 60HZ, resistive or inductive load.
•For capacitive load derate current by 20%

NOTES:
Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.
Thermal Resistance from Junction to Ambient at 0.375″(9.5mm) lead length, P.C. board mounted with 0.2″×0.2″(5.0×5.0mm) copper pads.
