US$ 0.012
2000–4999 Pieces
US$ 0.011
5000–9999 Pieces
US$ 0.01
≥10000 Pieces
Lead Time: 15 – 30 Days
Business Type: , Online Seller, Manufacturer
60 to 79
Employees
Company/product Brochure
5887.10 KB

ISO9001:2015

ROHS

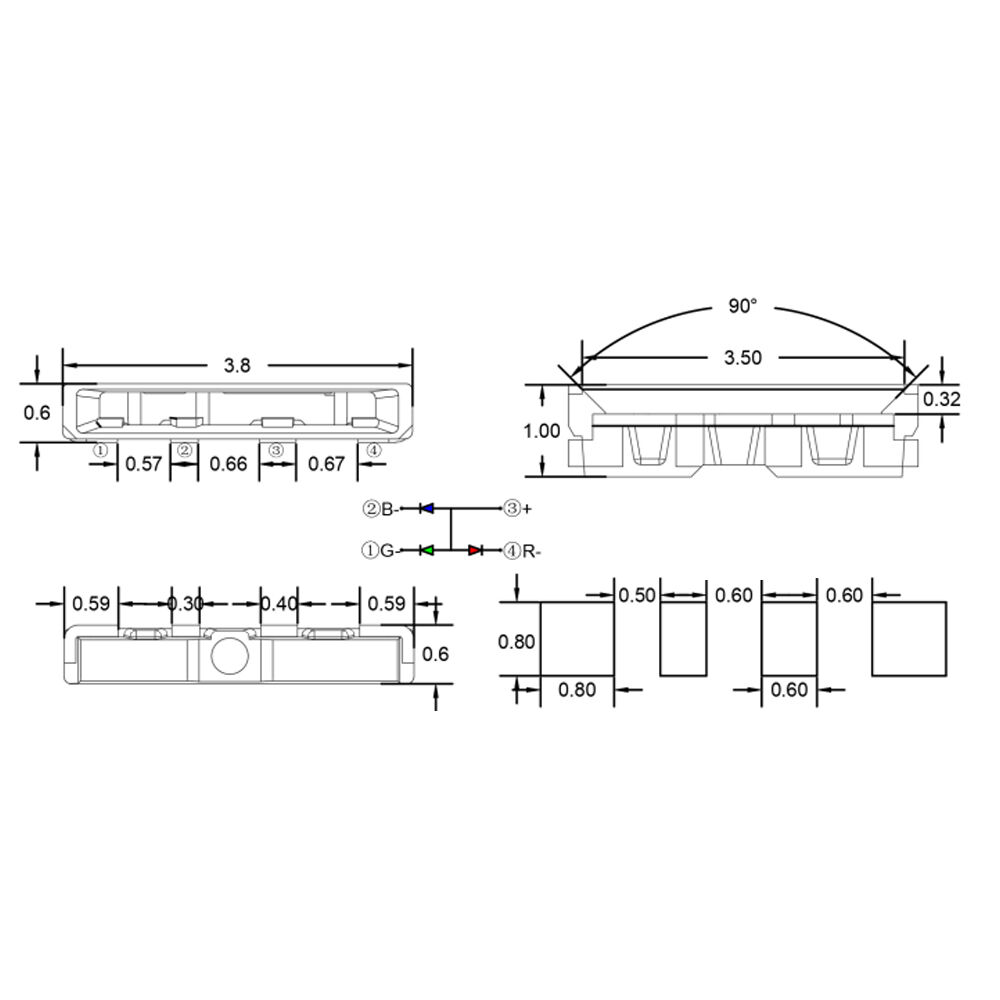

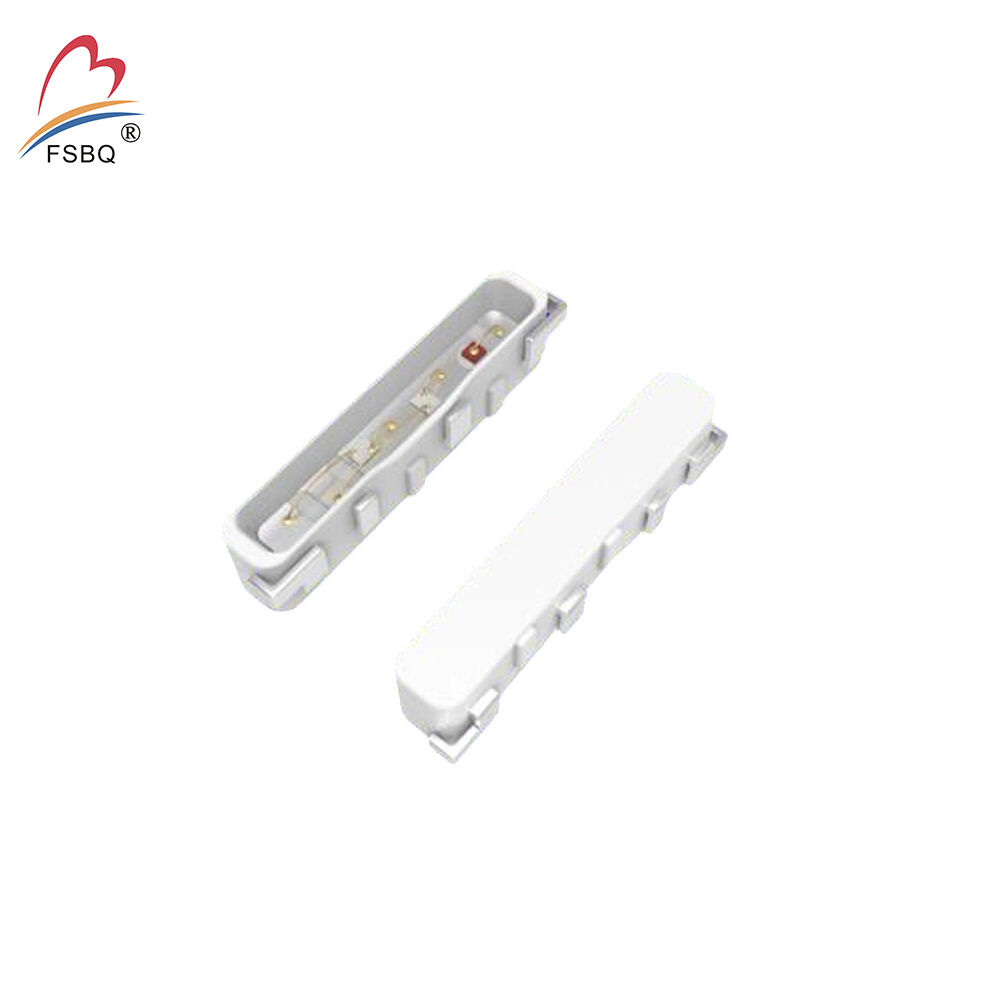

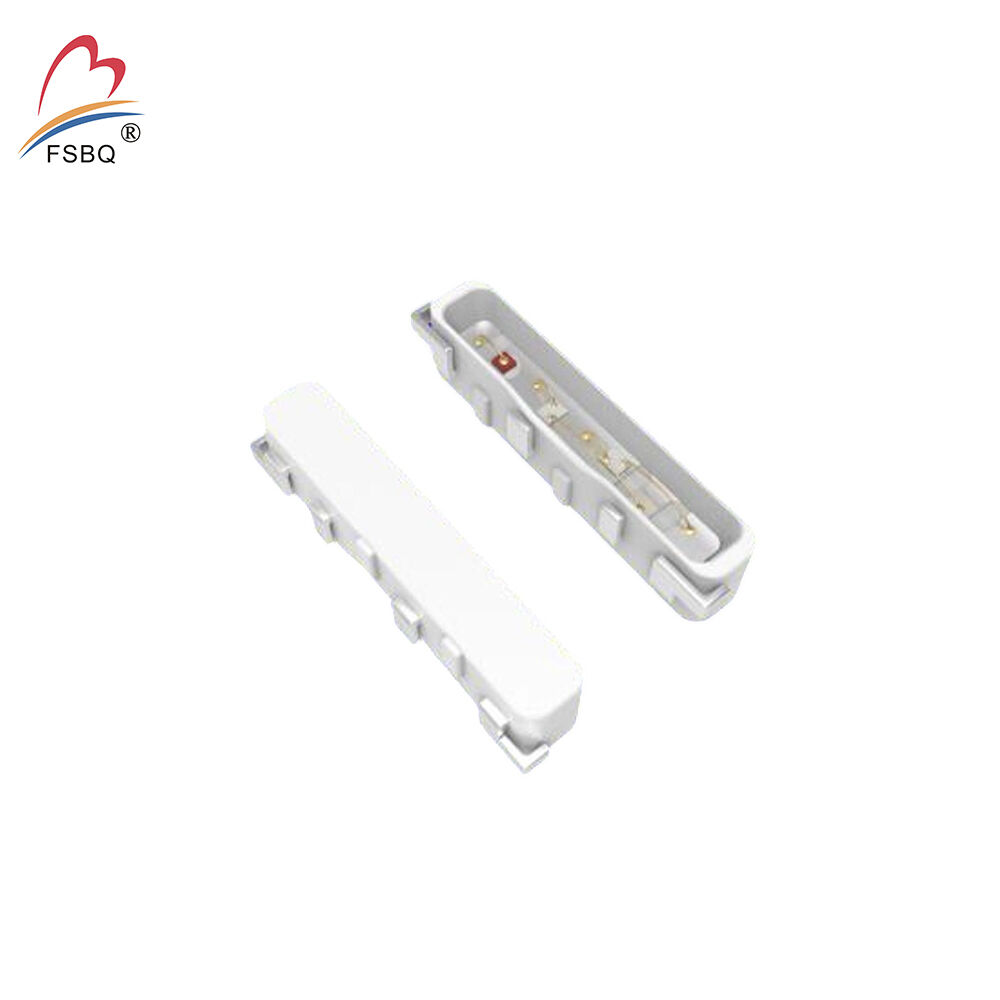

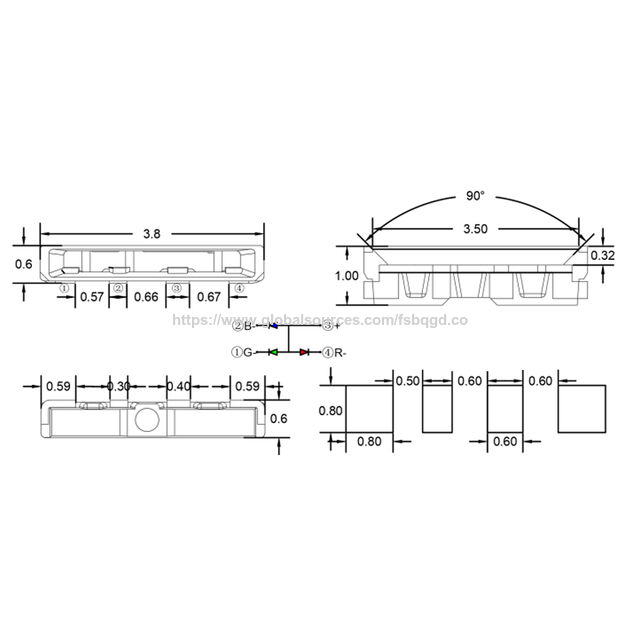

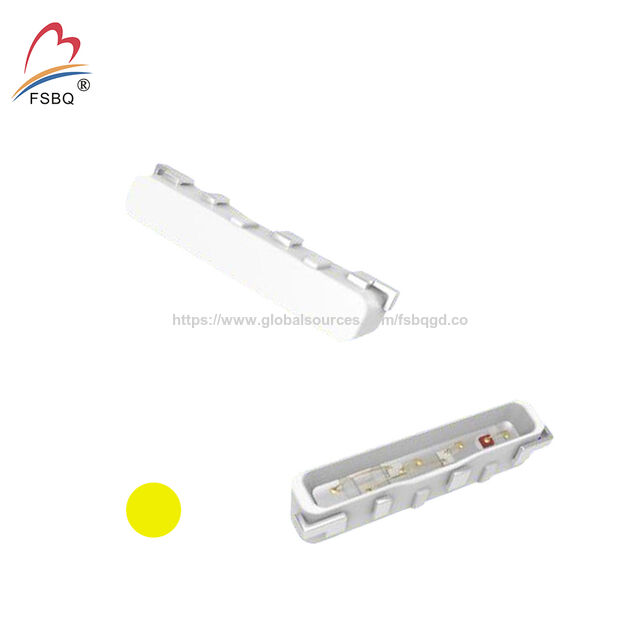

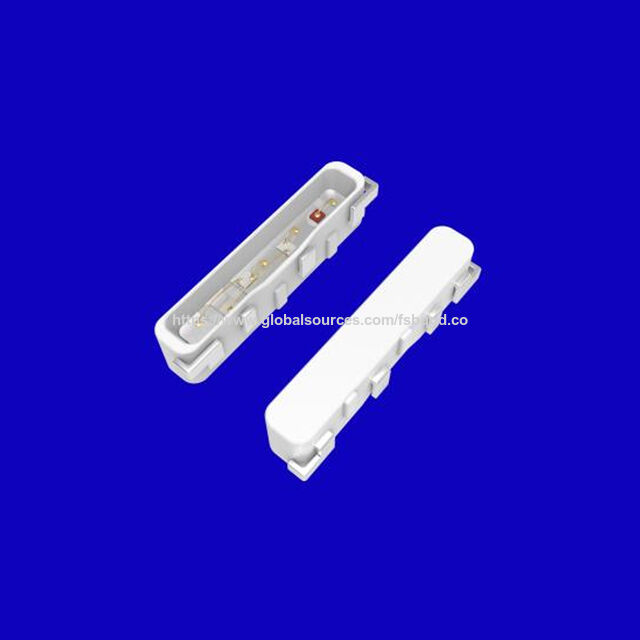

| Product | Size(L*W*Hmm) | Color | λd(nm)/CCT(K)/CIE(X,Y) | Vf(V) | IV(mcd) | Viewing Angle 2θ1/2 (deg) | IF(mA) | ||
| Min | Max | Min | Max | ||||||
| 033.R000 | 3.8*0.6*1.0 | Red | 618-640 | 1.8 | 2.4 | 400 | 1000 | 120° | 20 |
| 033.G000 | 3.8*0.6*1.0 | Greed | 512-525 | 2.5 | 3.5 | 1000 | 3500 | 20 | |
| 033.B000 | 3.8*0.6*1.0 | Blue | 460-470 | 2.5 | 3.5 | 500 | 800 | 20 | |
| 033.Y000 | 3.8*0.6*1.0 | Yellow | 580-595 | 1.8 | 2.4 | 400 | 600 | 20 | |
| 033.W000 | 3.8*0.6*1.0 | White | X:0.27 Y:0.22 | 2.5 | 3.5 | 2000 | 4000 | 20 | |
| 033.W000 | 3.8*0.6*1.0 | Ice Blue | X:0.15 Y:0.18 | 2.5 | 3.5 | 2000 | 4000 | 20 | |
| 033.RB | 3.8*0.6*1.0 | Red | 620-625 | 1.7 | 2.1 | 400 | 1000 | 20 | |
| Blue | 460-470 | 2.5 | 3.5 | 500 | 800 | ||||
| 033.RGB | 3.8*0.6*1.0 | Red | 620-625 | 1.7 | 2.1 | 400 | 1000 | 20 | |
| Greed | 512-525 | 2.5 | 3.5 | 1000 | 3500 | ||||
| Blue | 460-470 | 2.5 | 3.5 | 500 | 800 | ||||
| 033.RGW | 3.8*0.6*1.0 | Red | 620-625 | 1.7 | 2.1 | 400 | 1000 | 20 | |
| Greed | 512-525 | 2.5 | 3.5 | 1000 | 3500 | ||||
| White | X:0.27 Y:0.22 | 2.5 | 3.5 | 2000 | 4000 | ||||
LEDs have been widely adopted in lighting applications. For indoor lighting, LED fixtures deliver a comfortable and bright illumination environment while reducing eye strain. Compared with traditional incandescent lamps, LED fixtures reproduce object colors more accurately, resulting in superior lighting performance. In addition, their compact size and flexible material compatibility enable them to meet a broader range of design requirements, achieving more versatile indoor lighting effects.
In outdoor lighting, LEDs are extensively used in street lamps and landscape lighting. Their high brightness, low energy consumption, and long lifespan make them the preferred option. By cutting down on energy consumption and maintenance costs, LED street lamp systems can provide safer and more reliable lighting services. In landscape lighting, the adjustable brightness and wide color gamut offered by LEDs add vivid and colorful night scenes to outdoor spaces.
An LED display is composed of countless tiny light-emitting diodes. Boasting high definition, high contrast and vivid color saturation, it serves as an ideal choice for indoor and outdoor advertising, conference rooms as well as sports venues. In addition, LEDs feature low heat emission and compact size, making them a perfect solution for plant growth lighting. Whether for home indoor cultivation or large-scale plant factories, LED lighting technology can provide the specific light spectrum and intensity required to promote plant growth and development. In summary, light-emitting diodes (LEDs) convert electrical energy into light energy through the photoelectric effect of semiconductor materials.
Technical Specification
802.34kb
