Features
(1)3.0MP pixels: clear to distinguish characters, observe details and dynamic
(2)panoramic view angle of 360 degrees, full glass fisheye lens
(3)built in microphone to support voice intercom
(4)support wireless network connection / direct connect mode
(5)H.264+ video compression standard, video recording time is longer
(6) support TF card slot 1, maximum support 128G (not standard)
(7) light port: E27 (standard thread opening)
(8)operating voltage: 100~240V, 50~60HZ
(9)Power: less than 6W
Specification of the camera
ModelAP-B3-L
Camera
Sensor300W high performance sensor
Min.
illuminationColor:0.1Lux (F1.2,AGC ON); 0 Lux with IR
B/W: 0.01 Lux (F1.2,AGC ON),0 Lux with IR
Shutter time1/50(1/60)s to 1/10,000 s
Lensfisheye lens
View360° panoramic
audio inputBuilt-in microphone
Storage interfaceTF card slot, maximum support 128 g
MountE27
Working voltageAc 100-240V 50-60Hz
power≤6W
Encoding format
VideoH.264+Main Profile
Coding rate0.1Mbps~6Mbps
AudioG.711a
Max Image size2304*1296
FPS1296P 6fps
Connection mode
NetworkSupport wireless network connection
Features
The outer TF card slot, the biggest can support 128g,Support motion detection,,alarm push and linkage,JPEG snapshot,,support iCSee App.
Other
Temperature/Humidity-10℃~60℃, Humidity less than 90% (non-condensing)

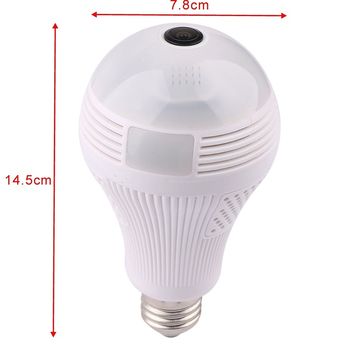

Dimension80mm*137.8m
WeightAbout 150g
