US$ 4000
1–1 Unit
US$ 3850
≥2 Units
Lead Time: 31 – 35 Days
Business Type: Buying Office, Consultant, Agent, Distributor, Exporter, Importer, Manufacturer, Online Seller, Other, Retailer, Trading Company, Wholesaler
High
Response Rate
≤24 h
Response Time
40 to 59
Employees
Product Description

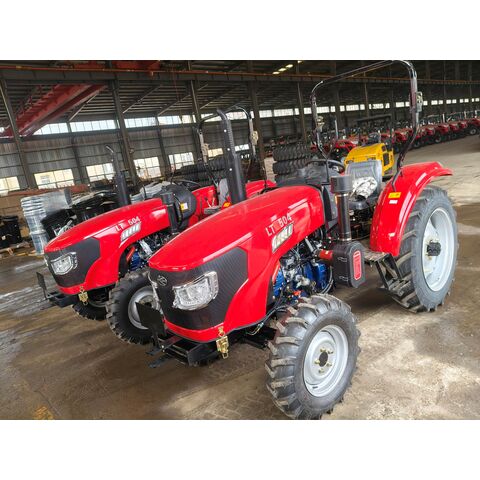

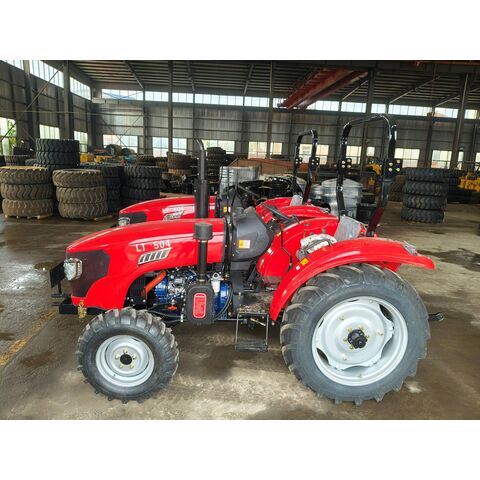

50HP Mini Wheel Tractor LTY504
High Performance and Highlights
1.Adopt diesel engine, good reliability, large reserve of torque, low fuel consumption, high economic efficiency;
2.Double-function , 10 inches, high transimission capacity, reliable, comfortable manipulation;

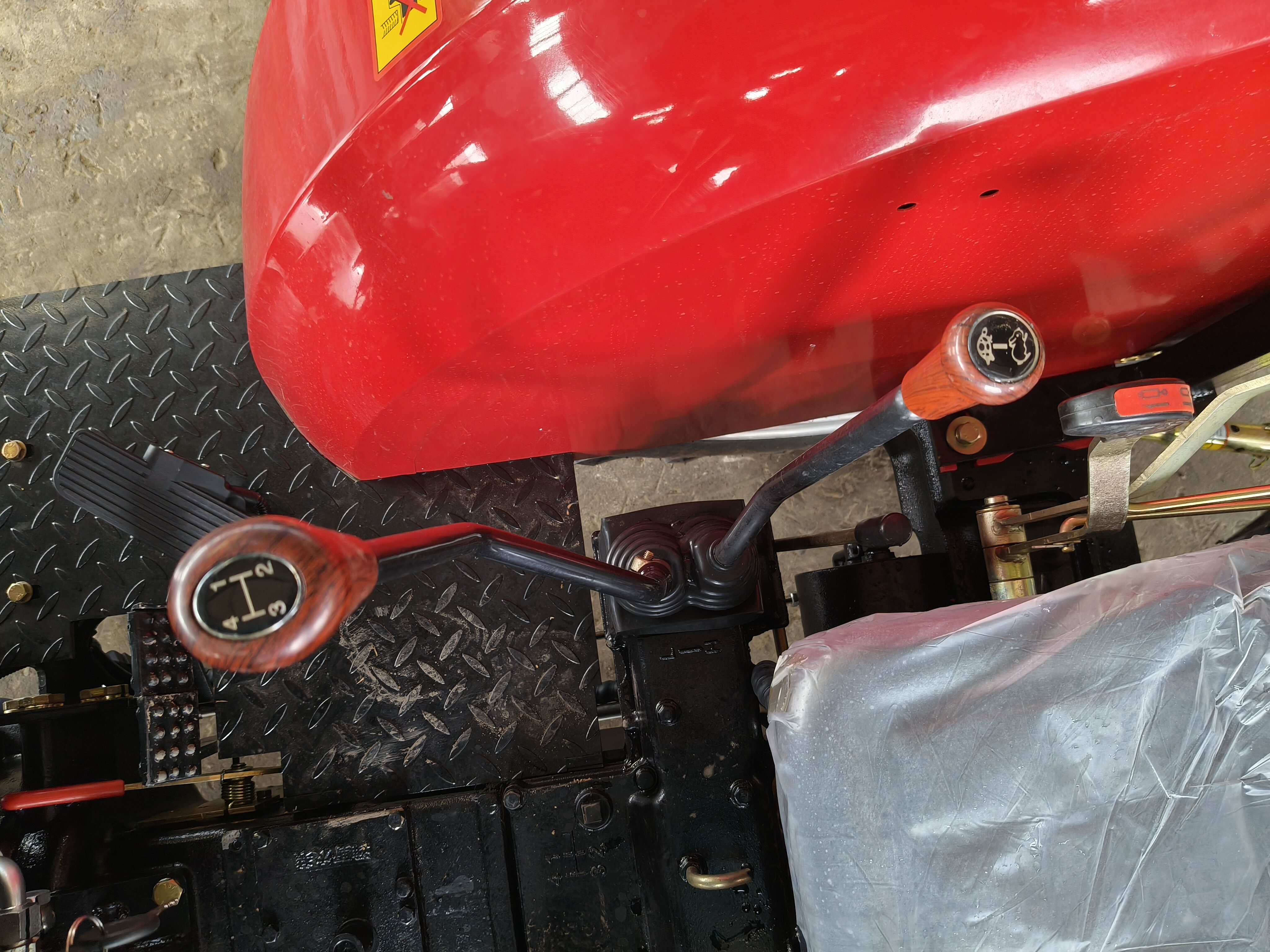

3.Gearbox using 4×3(1+1) engaging sleeve, shuttle-type gearshift, there are 12 forwards gears, 12 reserves gears, reasonable match between the gears, and have high efficiency;
4.Independent power take off device, smooth transmission, large capacity, speed(540/760, 540/1000 r/mim) for selection to meet the different operation requirements;
5.Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, realiable and save energy;
6.Adopt hrdrostatic disc-type brakes, a large braking torque, the braking effect is good;
7.Adopt high pressure tyoe lifting device, realiable, easy maintenance, multi-hydraulic output can be optioned;
8.Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9.New streamlined appearance, generous, modern, fashion;
10.Control levers can be mounted at side as optional, more convenient and comfortable.
| Tractor Model | LTY504 | ||
| Drive Type | 4X4 | ||
| Overall Dimension L×W×H(mm) | 3445×1550×2240 | ||
| Wheel base(mm) | 1830 | ||
| Front wheel tread(mm) | 1237 | ||
| Rear wheel tread(mm) | 1260 | ||
| Min. ground clearance(mm) | 310 | ||
| Min. operating weight (KG) | 1440 | ||
| Gearbox gears number | 8F+8R TY | ||
| Speed | Forward(km/h) | 20.3-30.65 | |
| Engine | Model | Yunnei Engine Euro IV | |
| Rated power (Kw) | 36.8 | ||
| Rated speed (r/min) | 2400 | ||
| Tires spec. | Front tires | 7.50-16 | |
| Rear tires | 11.2-28 | ||
| Steering Type | Full hydraulic front wheels steering | ||
| Hood | 104/300 | ||
| Anti-roll bar | √ | ||
| Split traction | √ | ||
| 1 set of hydraulic output (Y1) | √ | ||
| Rear track infinitely adjustable (T) | √ | ||
| Others | Sunshade | Optional | |
| Cabin | |||
| Warm conditioner | |||
| Air conditioner | |||

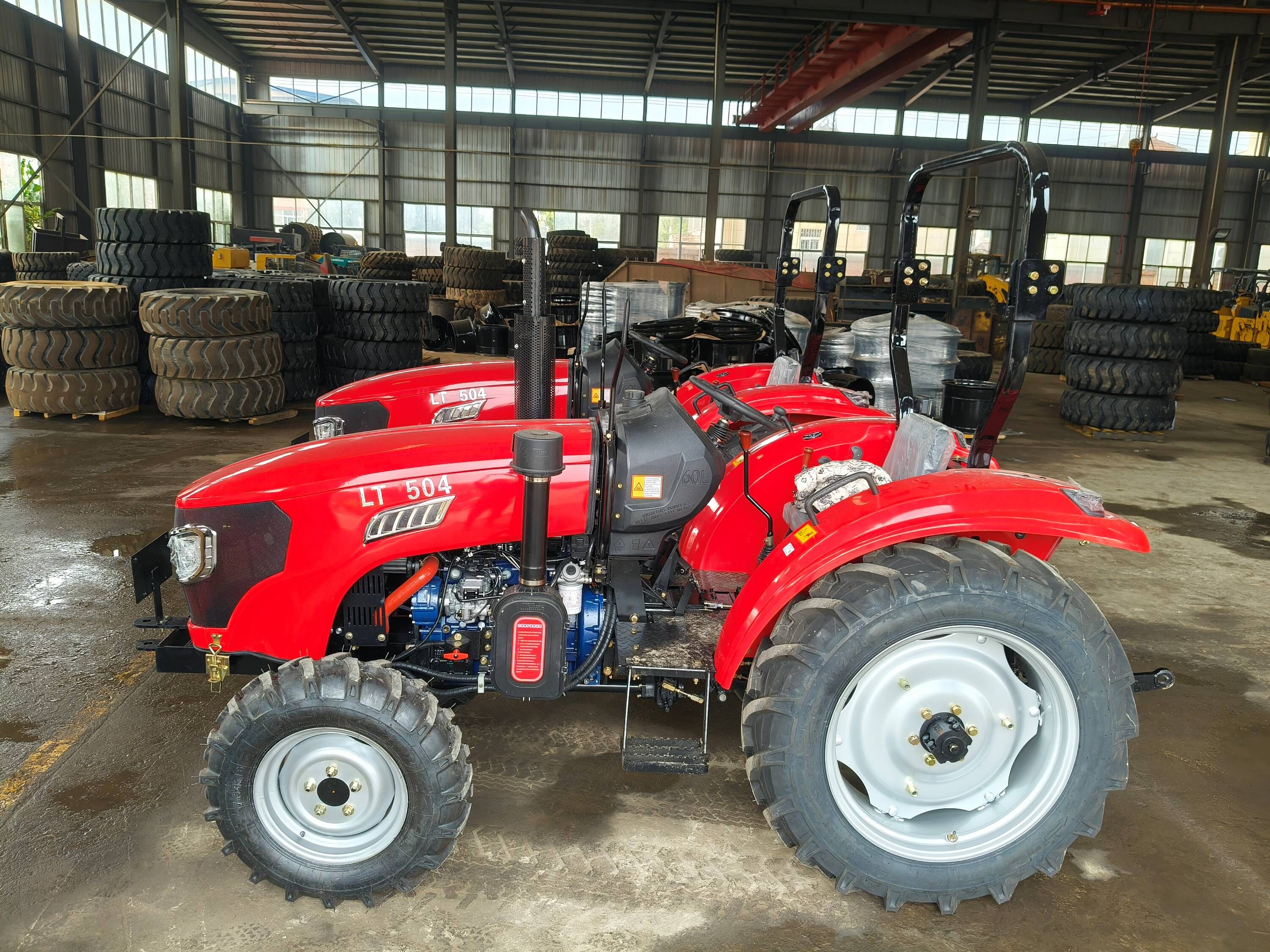

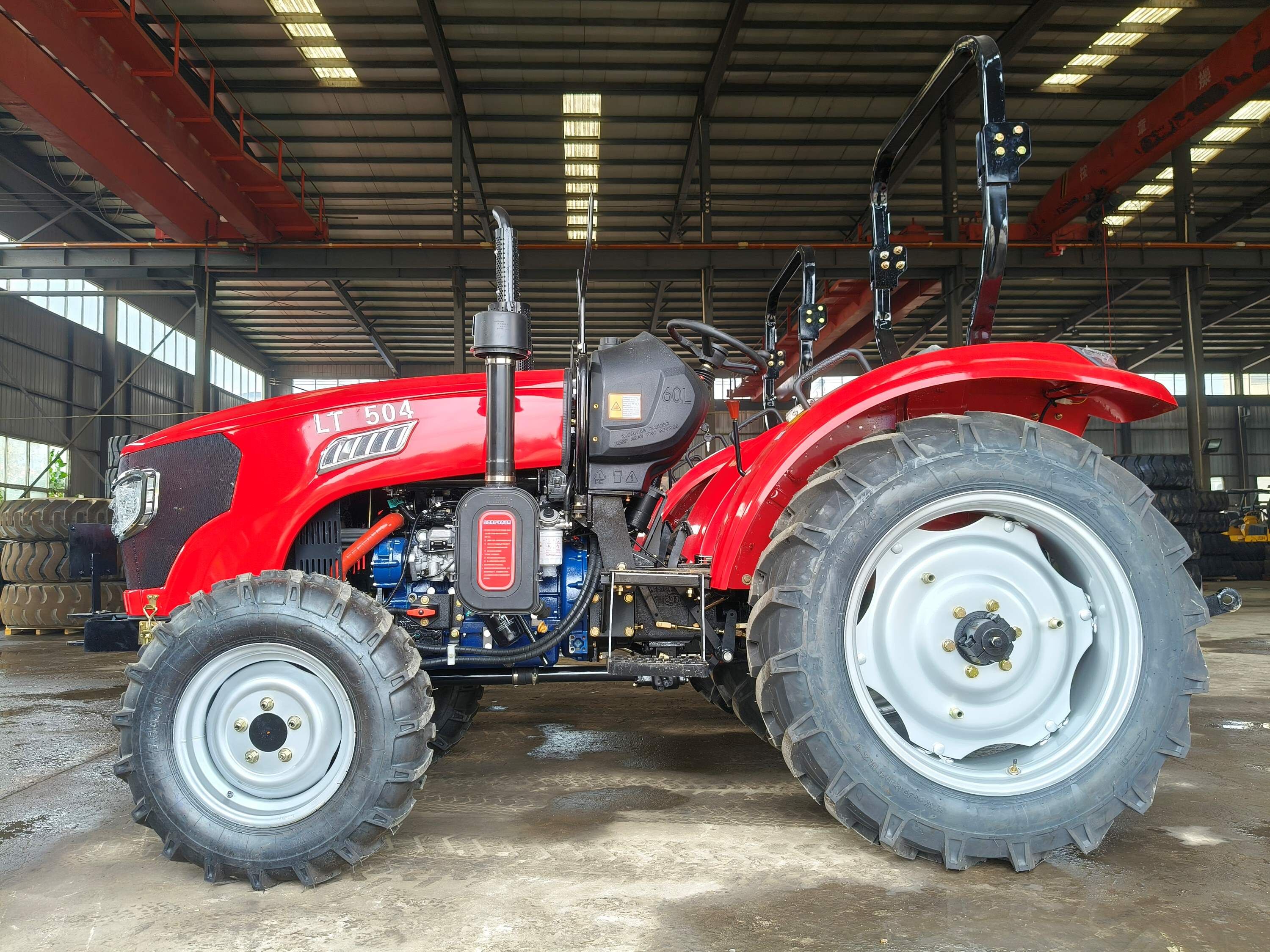

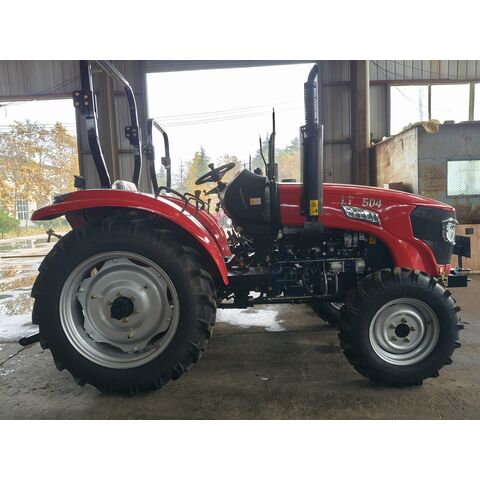

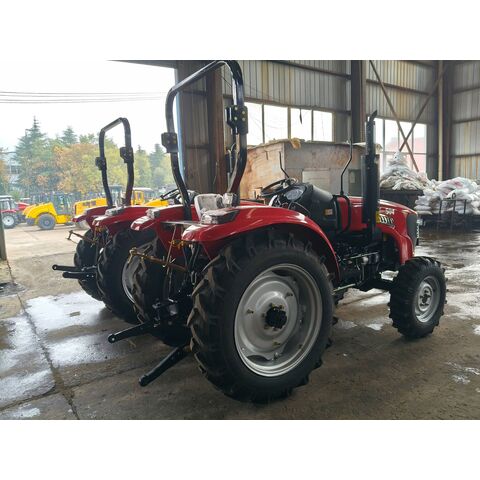

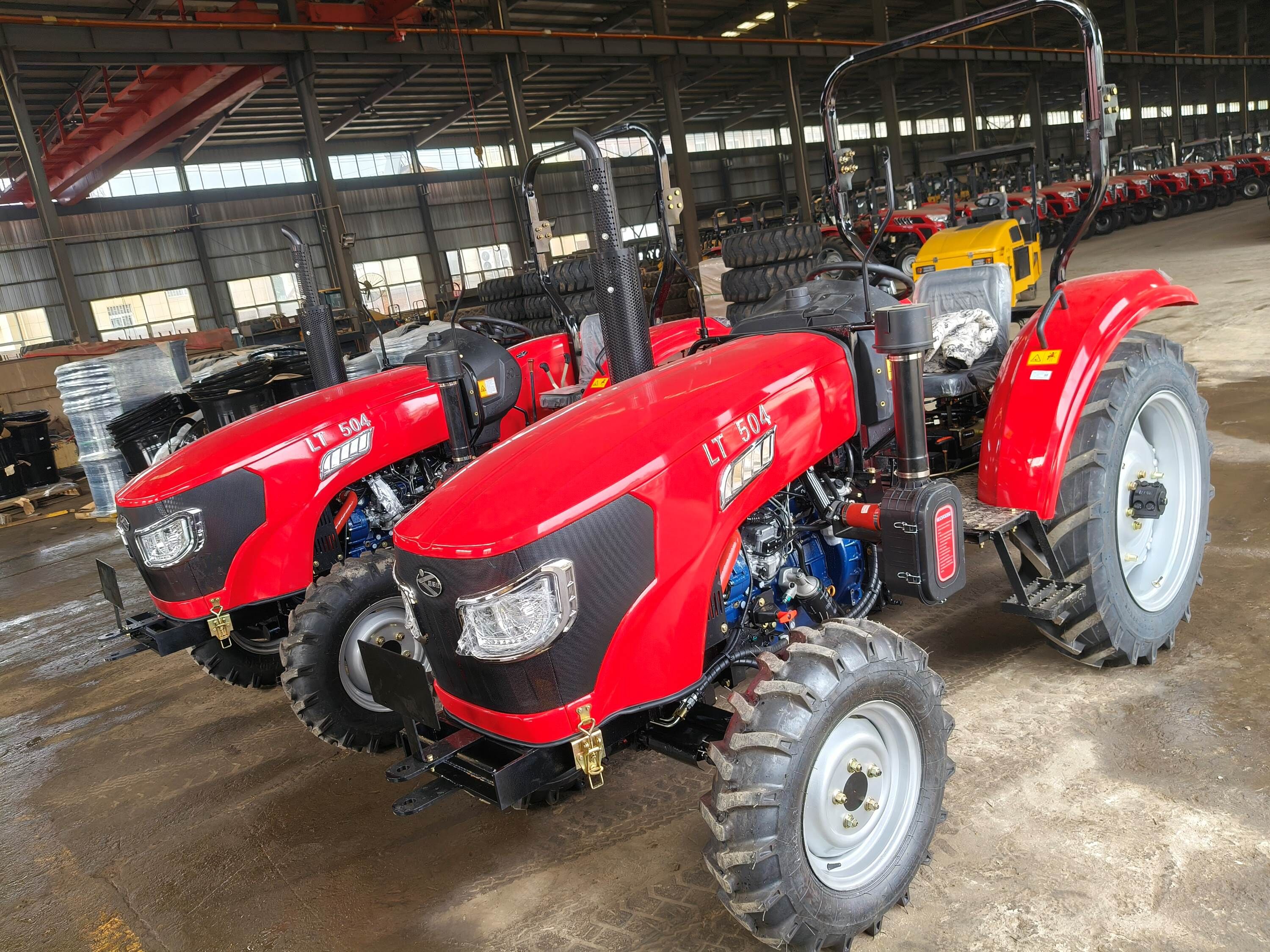

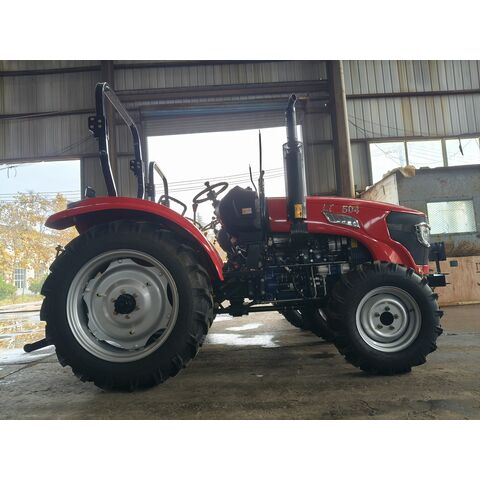

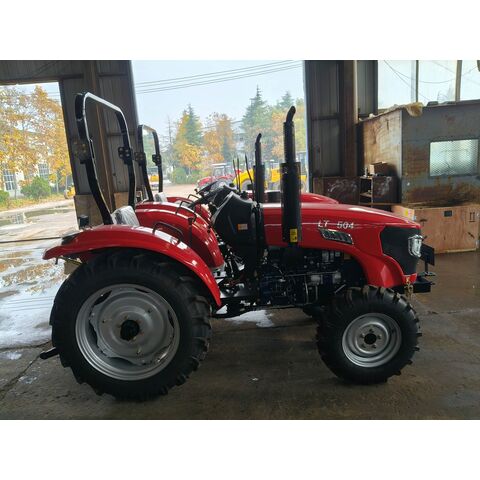

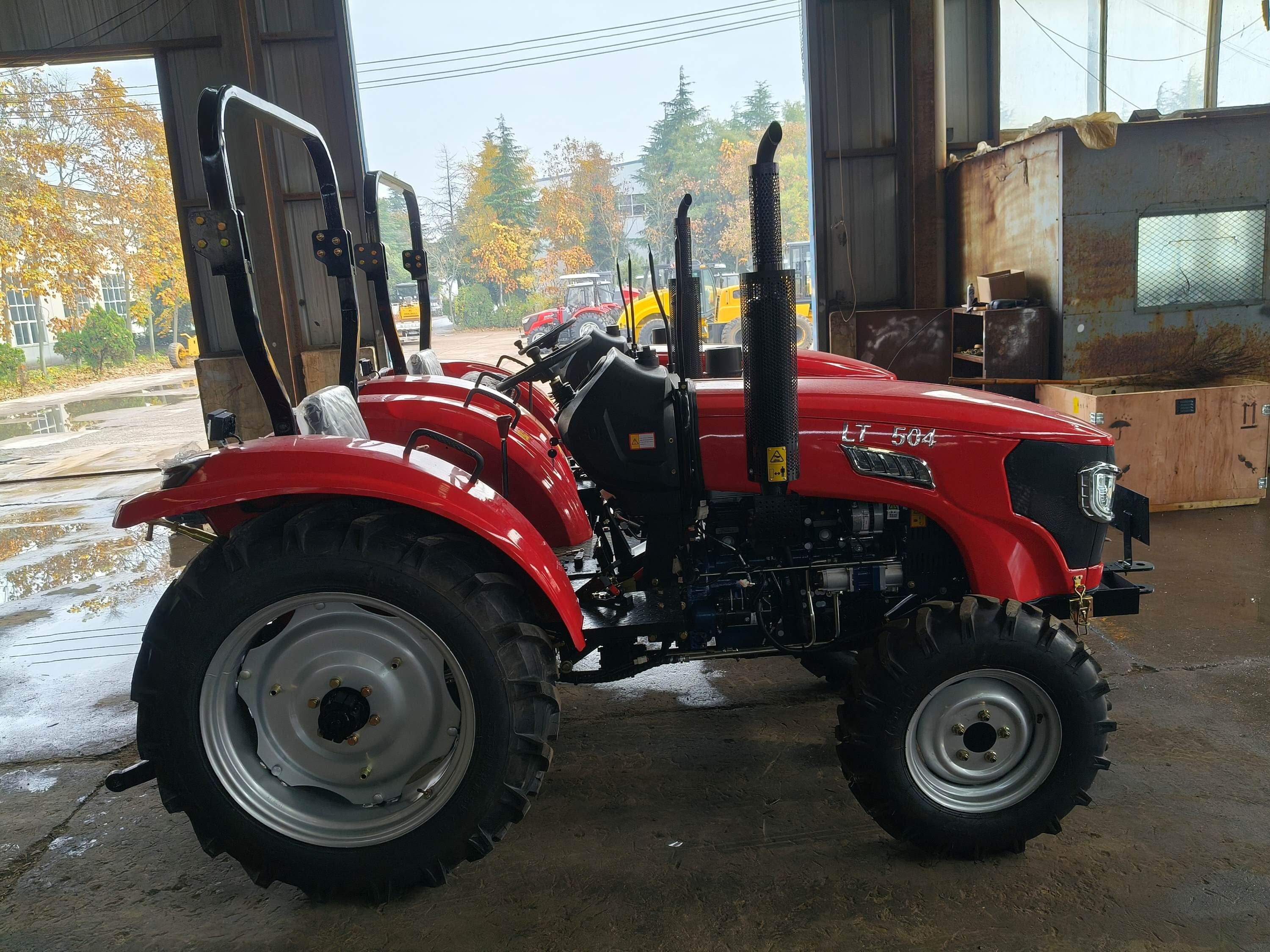

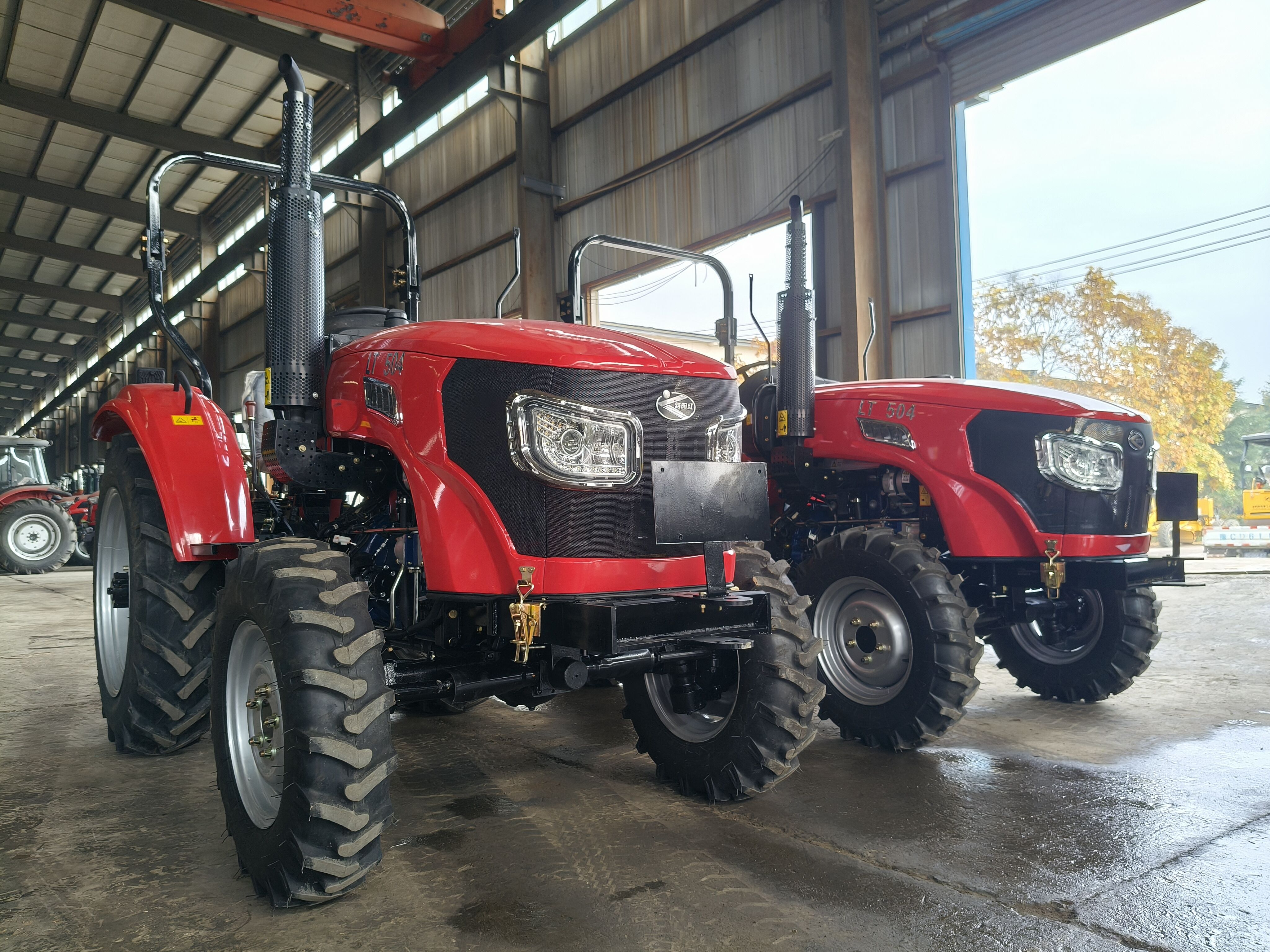

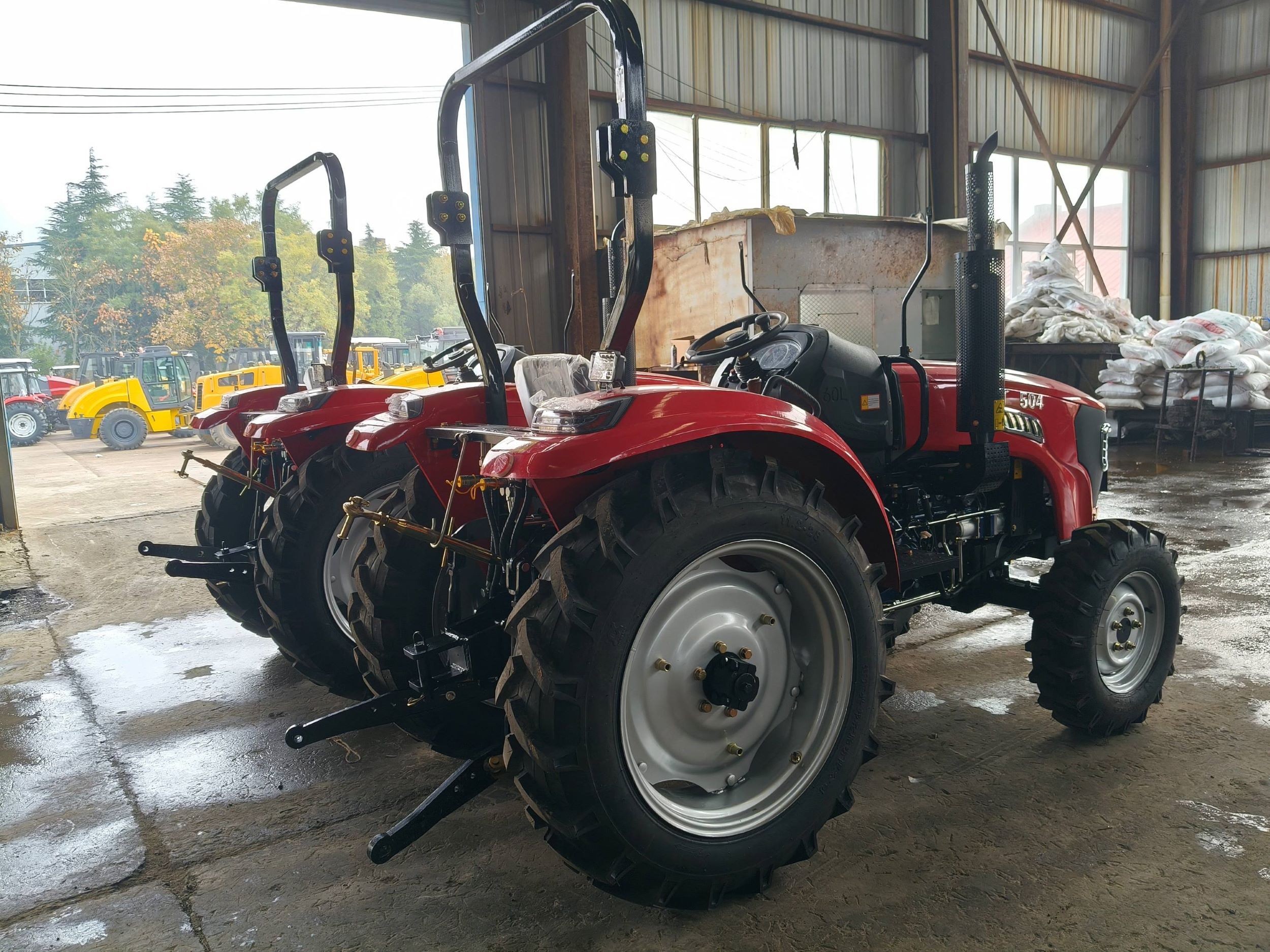

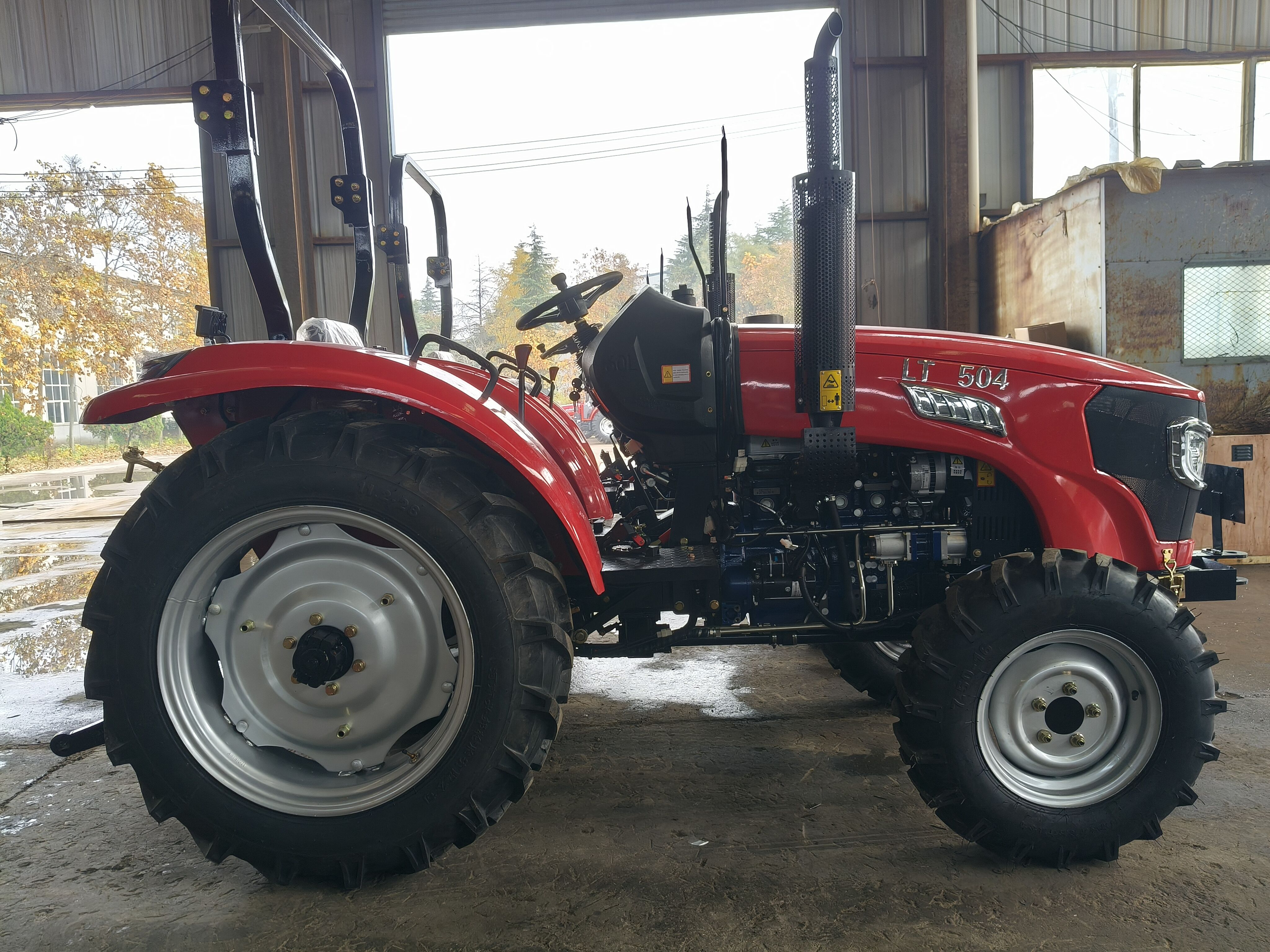

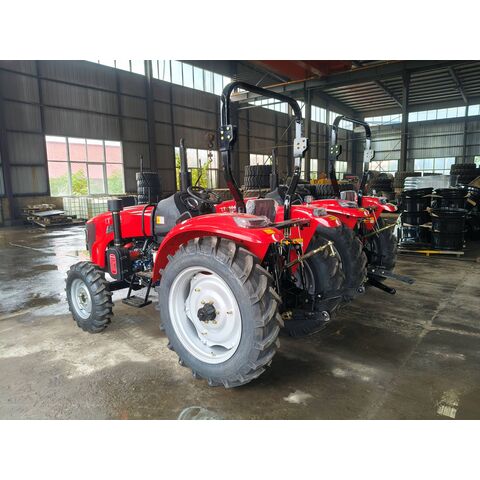

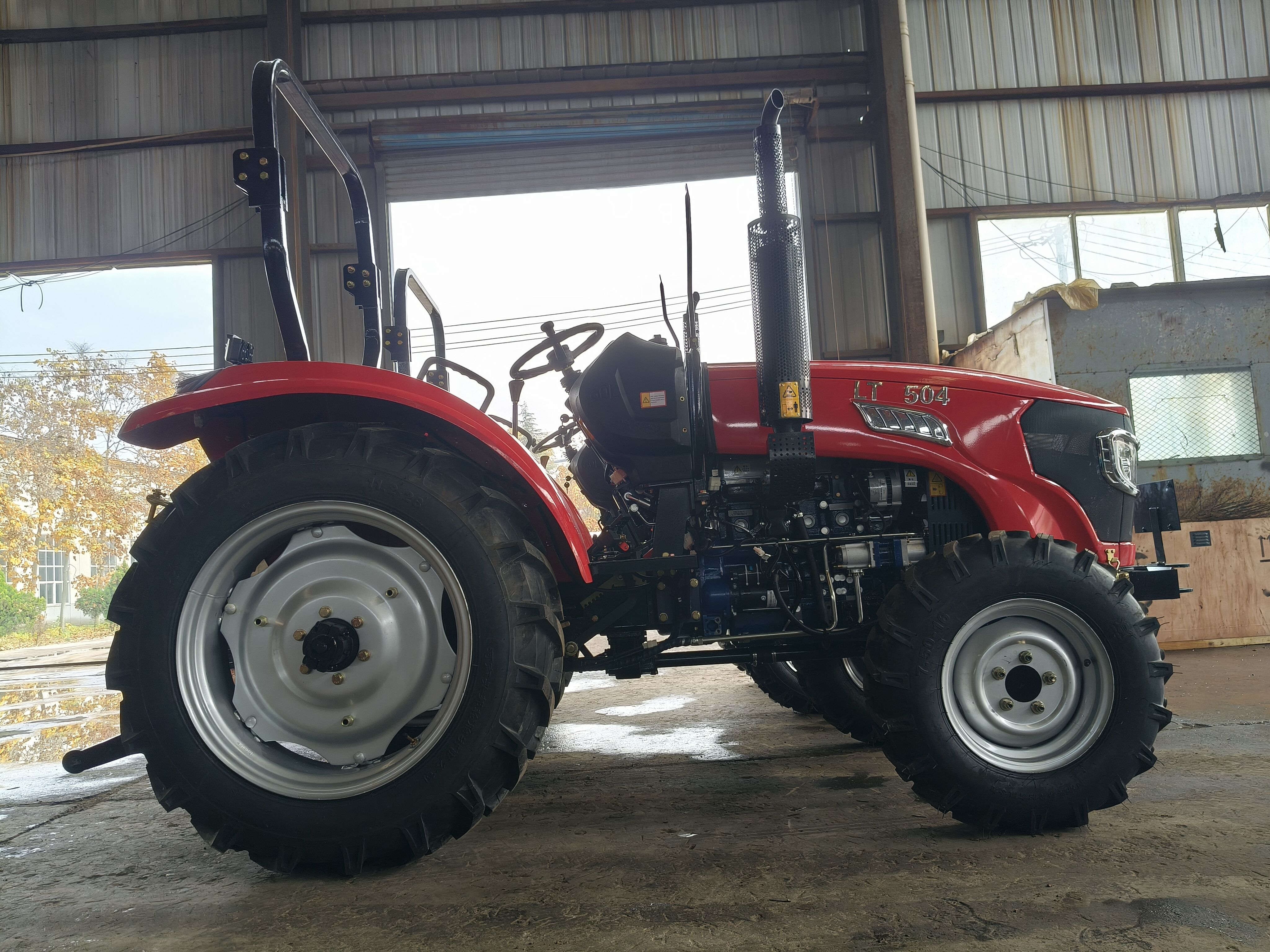

Detail Images
Company Profile
EVANGEL Industrial (Shanghai) Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with Evangel International Machinery Limited, located in the downtown of Shanghai City. Since our company was founded, we persistently introduce excellent Chinese construction machinery to international markets
We make more international customers know and approbate Chinese machinery, and gradually build up friendship with industrial customers all over the world. Our strengths are as follows:
(i) Ten years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(ii) Proactive and high educated sales team with international vision, speaking fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.;
(iii) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price; (iv) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(v) Comprehensive after-sales service, including one-year warranty, spare parts supply, installment and maintenance, training and technical advice; (vi) Expertly managed ERP system and coordinated quality control system to satisfy various project requirements. EVANGEL has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. Our export revenue increases constantly every year, and our products have already entered 118 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. EVANGEL, your genuine and professional partner in China!
