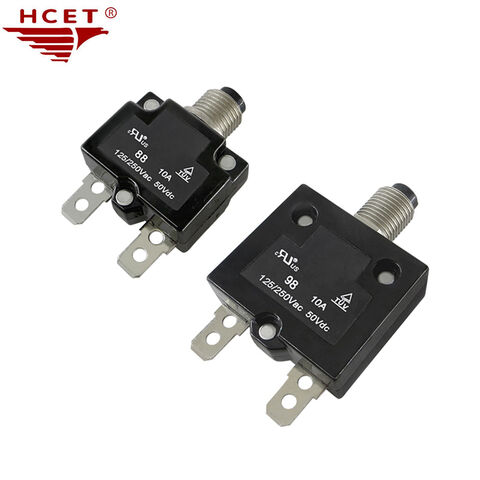

88/98 Bimetal Thermostat Circuit Breaker Overload Temperature Protector 12A
- US$ 1.1 - 1.12
- Min. Order:1000 Pieces
Product Attribute
Application:
Household, Industrial, Protective
Usage:
temperature protector
Material:
Metal
Lead Time: 7 – 10 Days
Important: This supplier does not currently advertise comprehensive company & product information with Global Sources. We cannot guarantee the accuracy of company and product information.
Related Products from Verified Suppliers
-
KUOYUH 98 Series Quick Connect Terminals with Transparent Waterproof Button Dust Cover (1-Pack)US$ 1.25 - 1.30100 Pieces (MOQ) - Similar YIBAI Design Circuit Breaker, 2PUS$ 0.25 - 0.405000 Pieces (MOQ)
- Tuya WIFI Smart Circuit Breaker 1P/2P/3P/4P AC160V-400V 16A-100A Power Meter Timer and Schedule AlexUS$ 31.90 - 35.9010 Pieces (MOQ)
- Motor-protective Circuit Breakers MMS-32S 0.16AUS$ 18.00 - 20.001 Pieces (MOQ)
- ABB Circuit Breaker Supply E1.2B-A 800 Ekip Dip LI 3p F F SupplyUS$ 1.001 Pieces (MOQ)
- Circuit Breaker S200-1P 16 A-B 2CDS251001R1165 B16US$ 1.0010000 Cartons (MOQ)
- You can contact me for the best price Hot sale original electronics Nader NDB5Z4 16/1P0-R device DC circuit breakerUS$ 1.001 Pieces (MOQ)
- 80A 100A 150A 200A 250A 300 Amps DC Car Auto Marine Stereo Audio Circuit Breaker with gold platedUS$ 6.00 - 6.80200 Pieces (MOQ)
- CB / CBA / PCBB Series Stud Mounted Auto Reset Circuit BreakersUS$ 0.14 - 0.151000 Pieces (MOQ)
- RV electrical socket panel with circuit breaker, temporary power socket panel injection molded productUS$ 144.30 - 154.4160 Pieces (MOQ)
- High quality custom copper busbar with silver contact for circuit breakers.US$ 0.10 - 0.191000 Pieces (MOQ)
- Circuit breakers WiFi smart, wireless, remote, remote controlUS$ 7.30 - 7.6020 Boxes (MOQ)
Sample Policy
We offer free samples, with shipping and taxes paid by the buyer
Product information
88/98 Series Over-current Protector

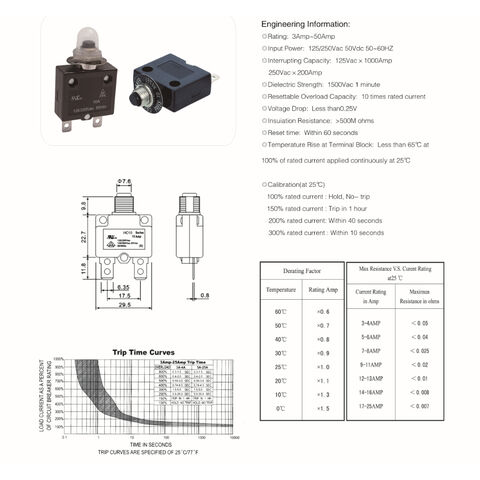

Engineering Information:
● Rating: 3Amp~50Amp
● Input Power: 125/250Vac 50Vdc 50~60HZ
● Interrupting Capacity: 125Vac╳1000Amp
250Vac╳200Amp
● Dielectric Strength: 1500Vac 1 minute
● Resettable Overload Capacity: 10 times rated current
● Voltage Drop: Less than0.25V
● Insuiation Resistance: >500M ohms
● Reset time: Within 60 seconds
●Temperature Rise at Terminal Block: Less than 65℃ at 100% of rated current applied continuously at 25℃
●Calibration(at 25℃)
100% rated current : Hold, No- trip
150% rated current : Trip in 1 hour
200% rated current: Within 40 seconds
300% rated current : Within 10 seconds
Shipping Information
- FOB Port: China (Mainland)
- Lead Time: 7–10 Days
- Weight Per Unit: 0.05 Kilograms
- Dimensions Per Unit: 4.45 x 2.95 x 1.0 Centimeters
- US HTS Code: 8536.30.00 00
- Units per Export Carton: 200.0
- Export Carton Dimensions: 39.0 x 31.5 x 18.8 Centimeters
- Export Carton Weight: 8.0 Kilograms
