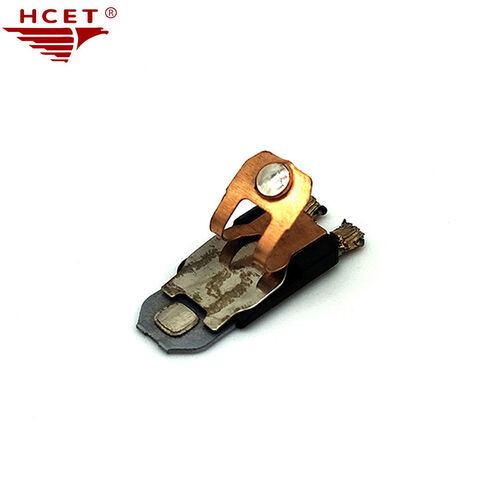

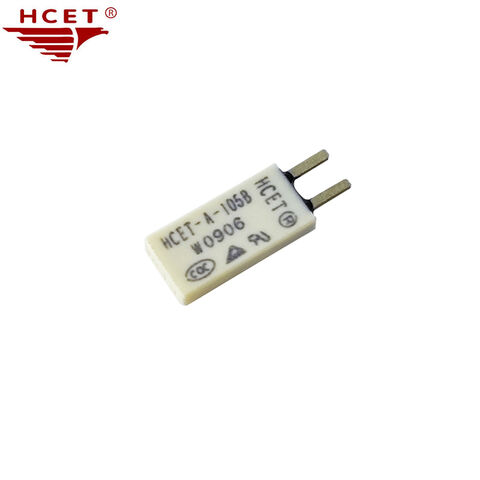

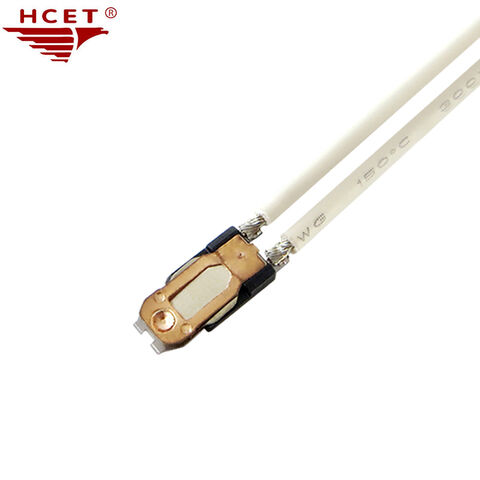

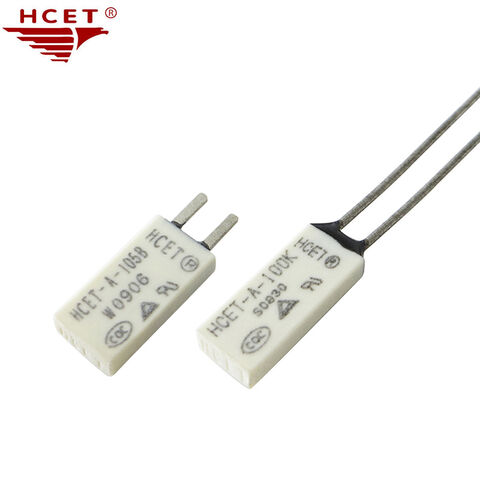

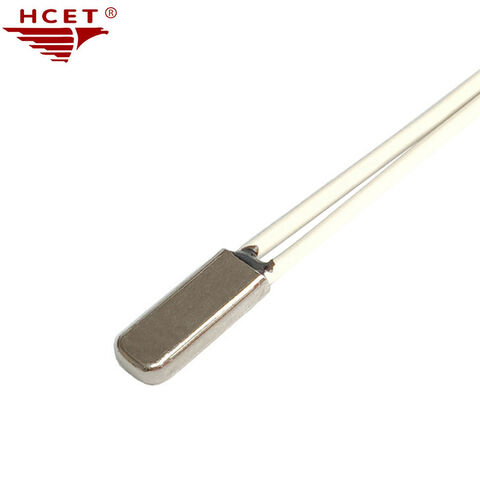

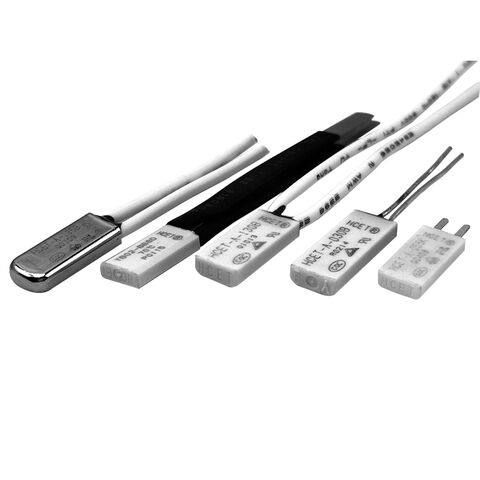

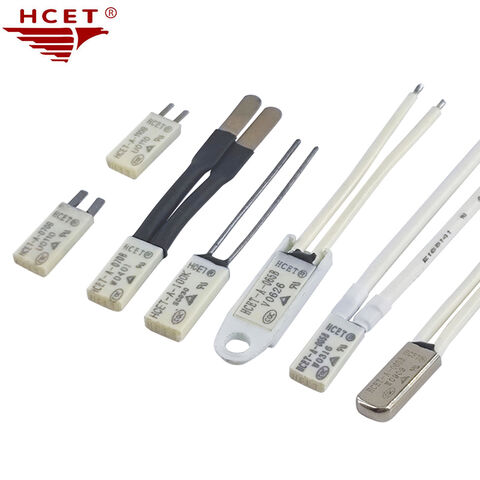

High quality manufacturer HCET-A 12V 10A 2.5A 250V Normally Closed Motor Thermal Protector Bimetal strip

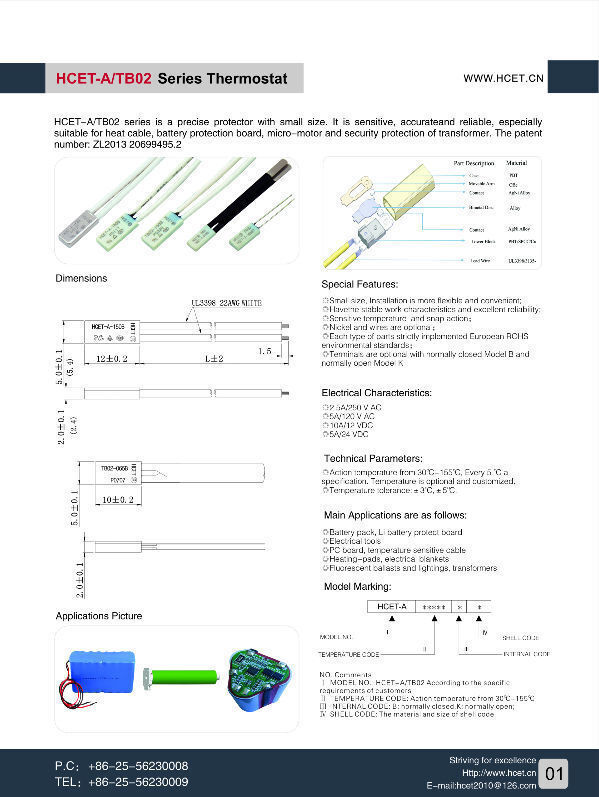

HCET-A/TB02 Series Thermostat

HCET-A/TB02 series is a precise protector with small size. It is sensitive, accurate and reliable, especially suitable for heat cable, battery protection board, micro-motor and security protection of transformer. The patent number: ZL2013 20699495.2

Special Features:

● Small size, Installation is more flexible and convenient;

● Have the stable work characteristics and excellent reliability;

● Sensitive temperature  and snap action;

● Nickel and wires are optional;

● Each type of parts strictly implemented European ROHS environmental standards;

● Terminals are optional with normally closed Model B and normally open Model K

Electrical Characteristics:

● 2.5A/250 V AC

● 5A/120 V AC

● 10A/12 V AC

● 5A/24 V AC

Technical Parameters:

● Action temperature from 30℃-155℃, Every 5 ℃ a specification. Temperature is optional and customized.

● Temperature tolerance:±3℃,±5℃.

Main Applications are as follows:

● Battery pack, Li battery protect board

● Electrical tools

● PC board, temperature sensitive cable

● Heating-pads, electrical blankets

● Fluorescent ballasts and lightings, transformers

Nanjing Haichuan Electronic Co., Ltd builds the 2MM motor protector to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, etc.. This compact motor protector is the best solution to protect the wide variety of motors used in industrial and domestic appliances against locked rotor and overload situations.
