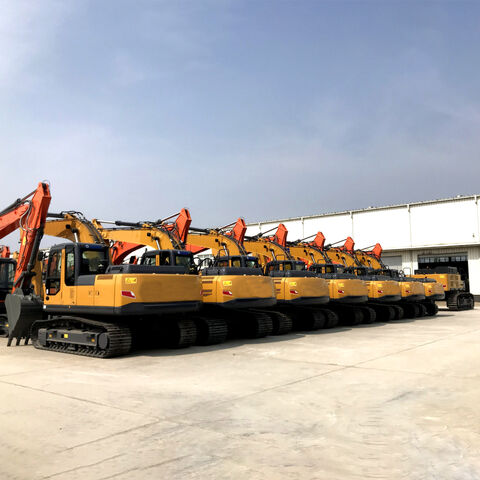

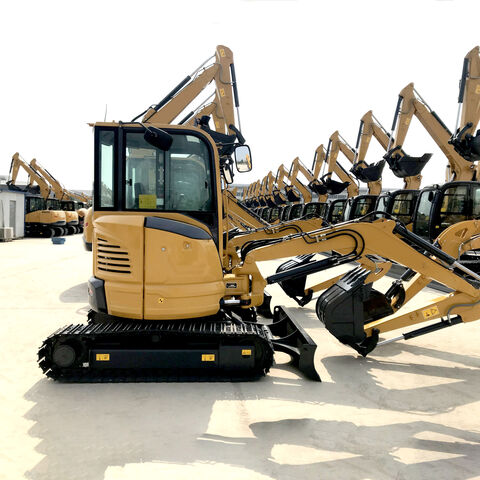

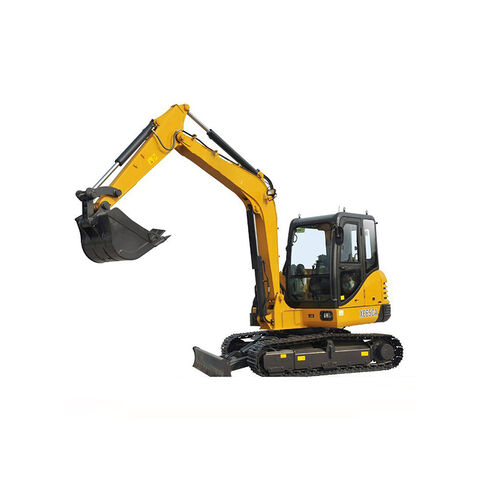

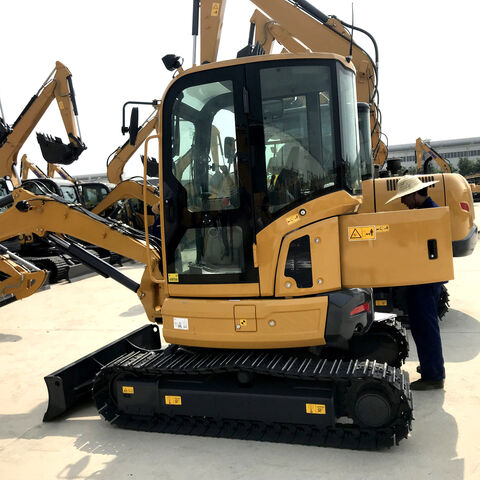

High Performance XE105GA 10.5ton Crawler Excavator for Heavy Duty Work

US$ 31000

1–2 Unit
US$ 30000

≥3 Units

Product Attribute

Bucket: Backhoe, Grab shovel, Dragline

Drive Type: Electric drive, Internal combustion drive

Bucket capacity: 0.32-0.61m3

Lead Time: 10 – 30 Days

Tewrex Industrial Machinery (Suzhou) Co., Ltd.

Business Type: Agent, , Online Seller, Retailer, Exporter, Buying Office, Consultant, Importer, Trading Company, Wholesaler, Manufacturer, Distributor

High

Response Rate

24–48 h

Response Time

40 to 59

Employees

Company/product Brochure

5069.78 KB

Visit Store

Sample Policy

Product information

Products Description

High Performance XE105GA 10.5ton Crawler Excavator for Heavy Duty Work

Features:

* Equipped with a 98CT low-speed high-torque engine and a large-displacement electronically controlled pump, it responds quickly and has high operating efficiency;

* Standard 0.45m³ earthwork bucket, optional bulldozer, 500mm wide crawler, matched with a 100mm breaker, full crushing force and stable body. ;

* Medium-level cab, spacious and comfortable working environment, high-power fully automatic air conditioning, standard external circulation, fresher air;

* The whole machine is stable and powerful, with high efficiency and low fuel consumption, coordinated movement, fast speed and more efficient operation.

Contact Way

Merry Zhang--Sales Director

Tewrex Industrial Machinery (Suzhou) Co., Ltd.TEWREX ENGINEERING LIMITED

Whatsapp/Wechat/Mobile: +86-19803840980

E-mail: merry@ tewrex.com

Company Website: www.tewrex.comAdd:Suite 704.705, Building 2, Tiandu Plaza, No.211 Changjiang Road, National Hi-Tech Distric

Product Parameters

Sales model		Unit	XE105GA
Operating weight		Kg	10450
Bucket capacity		m³	0.45
Engine	Model	/	4TNV98CT
	No. of cylinders	/	4
	Output power	kw/rpm	53.7/2100
	Maximum torque/speed	N.m/rpm	295.5/1365
	Displacement	L	3.19
Main performance	Travel speed	km/h	4.8/2.4
	Swing speed	r/min	10
	Gradeability	°	70
	Ground pressure	kPa	39.2
	Bucket digging force	kN	65
	Arm digging force	kN	53
	Maximum traction	kN	/
Hydraulic system	Rated flow of main pump	L/min	220
	Main safety valve pressure	MPa	31
	Travel system pressure	MPa	29
	Rotary system pressure	MPa	23.5
	Pilot system pressure	MPa	3.5
Oil Capacity	Fuel tank capacity	L	200
	Hydraulic tank capacity	L	82
	Engine oil capacity	L	10
Appearance size	A Overall length	mm	6538
	B Overall width	mm	2450
	C Overall height	mm	2928
	D Width of platform	mm	2380
	E Track length	mm	3205
	F Overall width of chassis	mm	2450
	G Track width	mm	500
	H Length to center of rollers	mm	2560
	I Track gauge	mm	1950
	J Counterweight clearance	mm	854.5
	K Min. ground clearance	mm	400
	L Min. tail swing radius	mm	2000
	M Track height	mm	741
