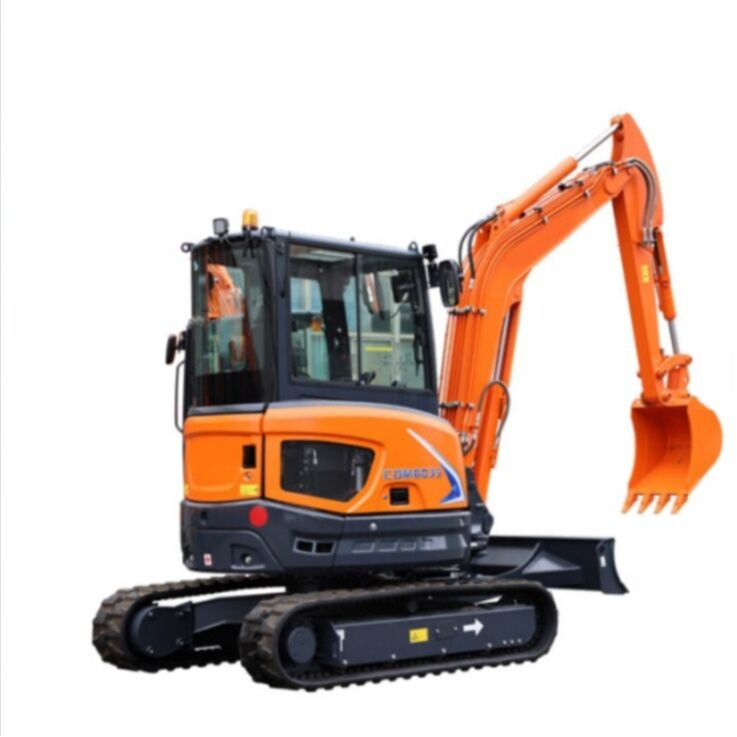

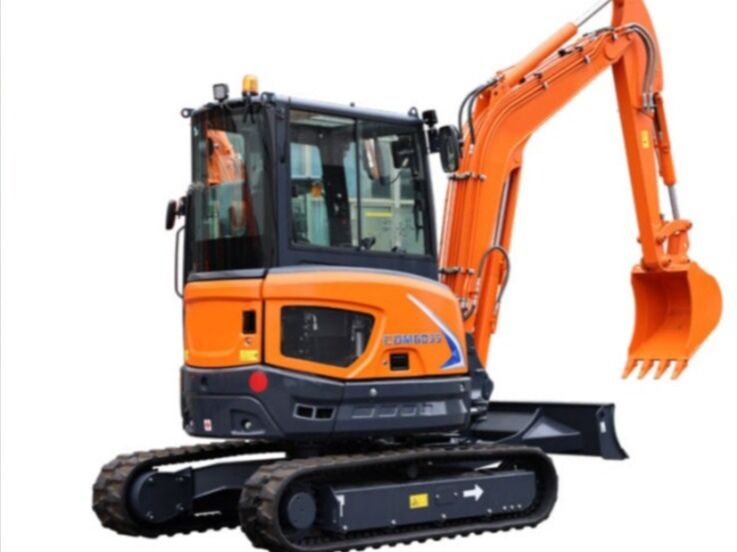

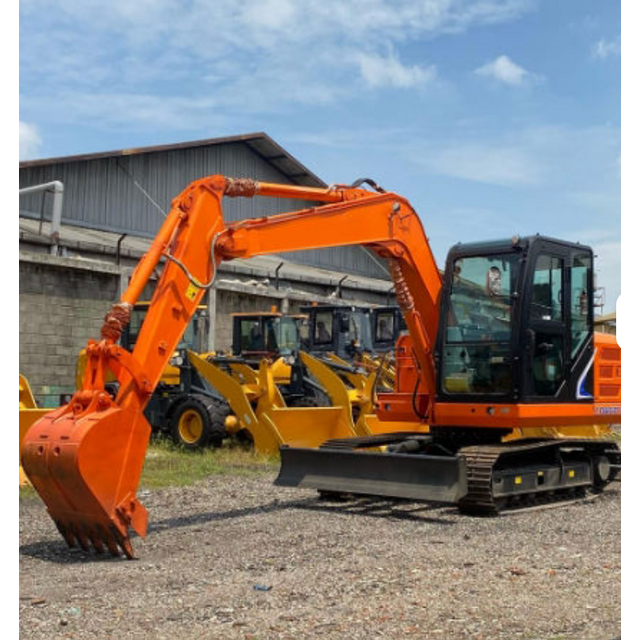

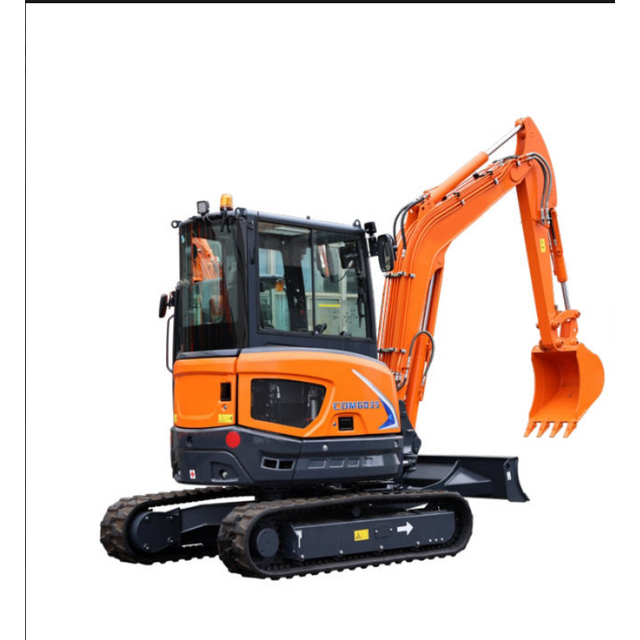

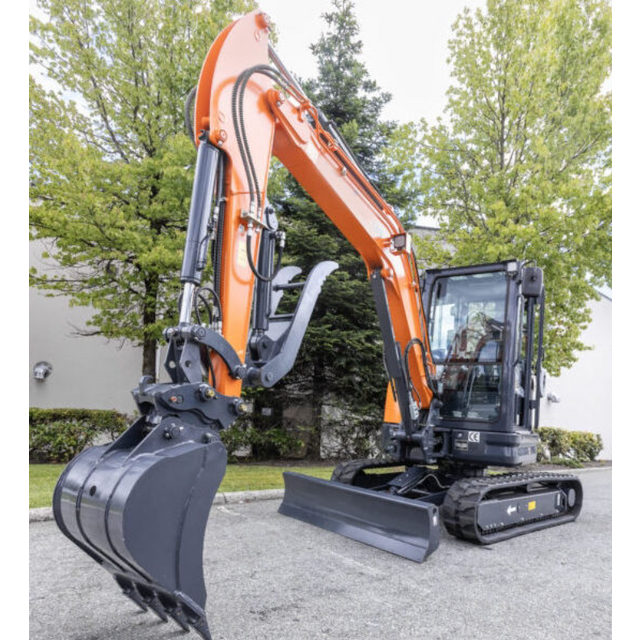

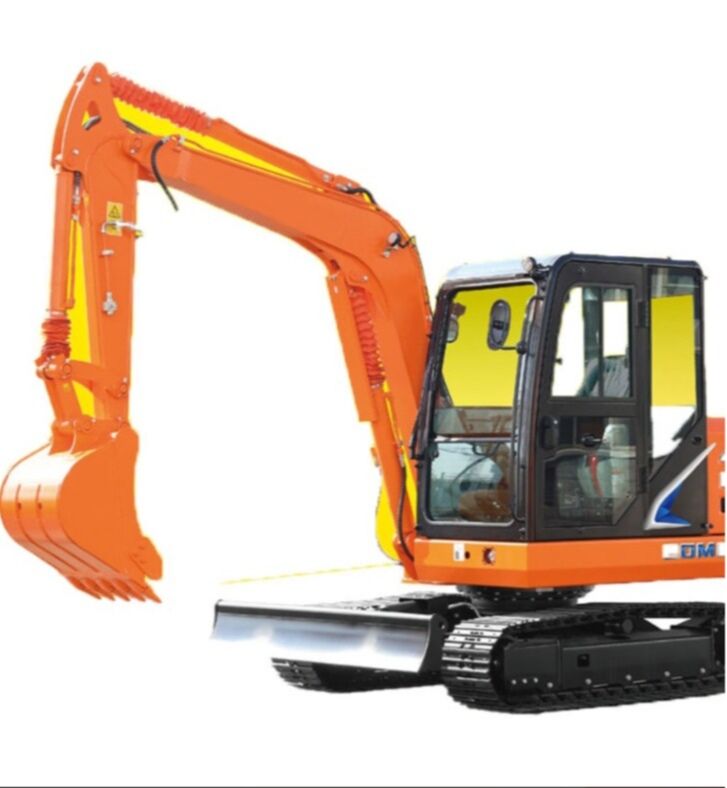

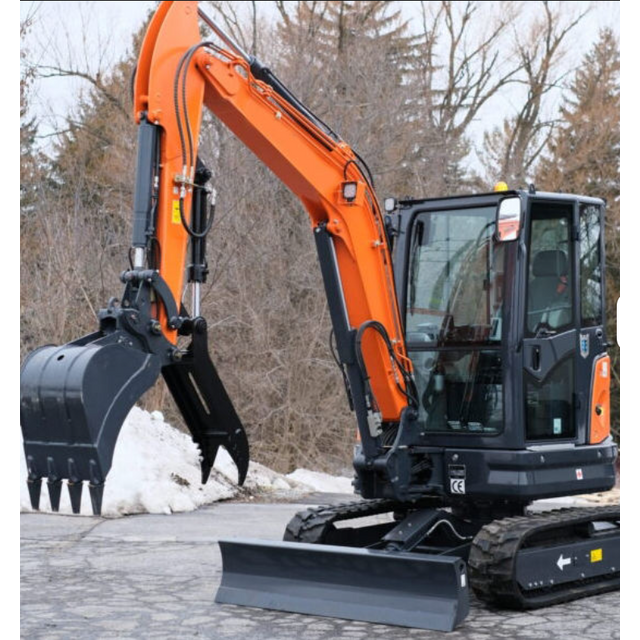

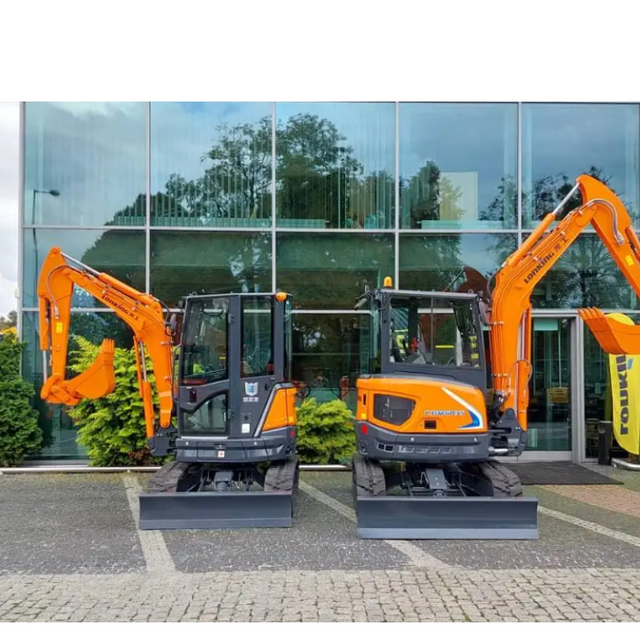

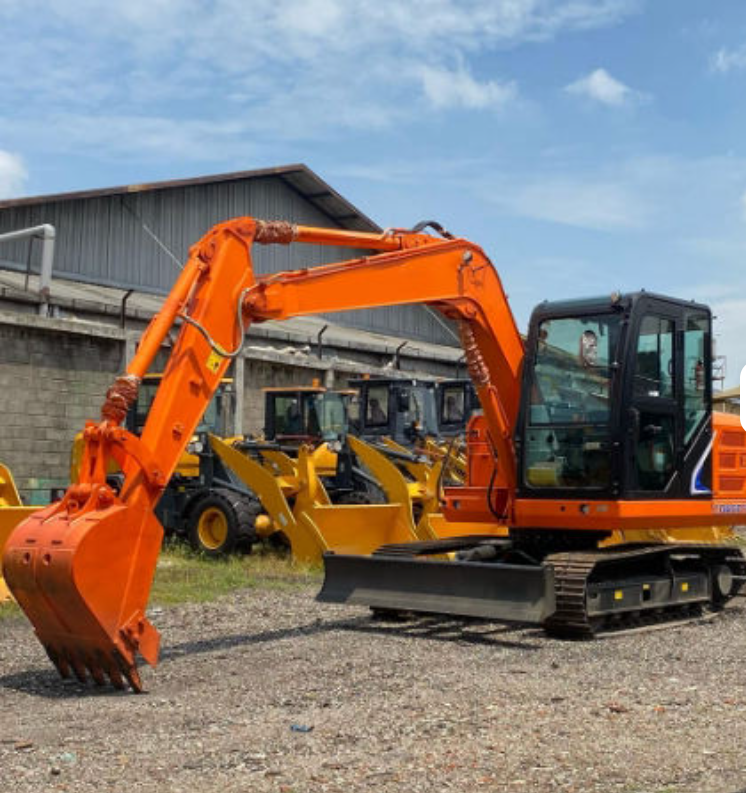

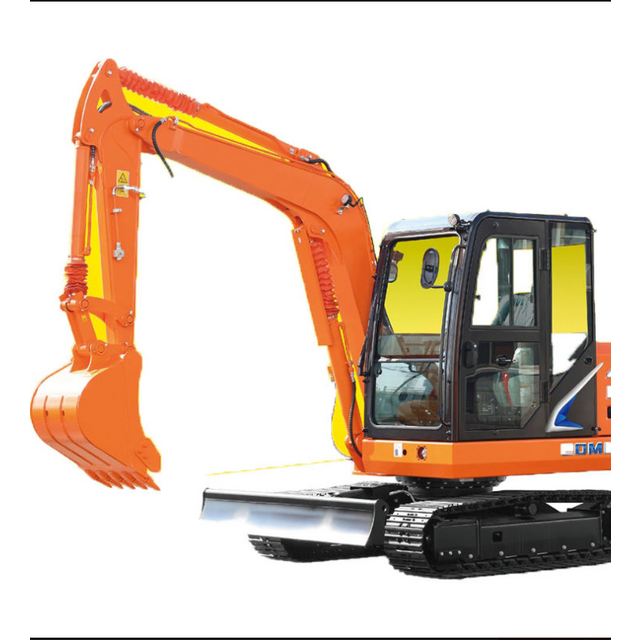

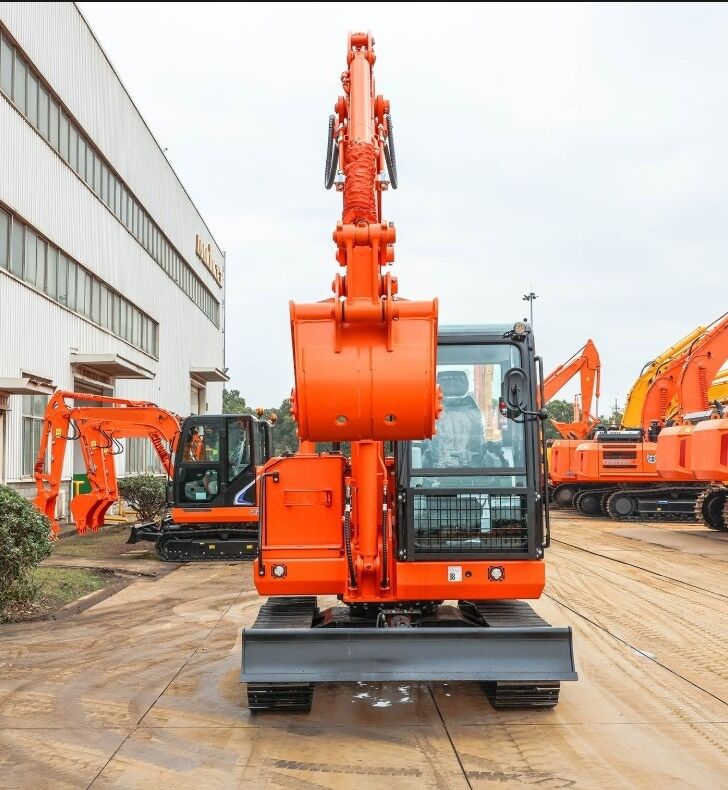

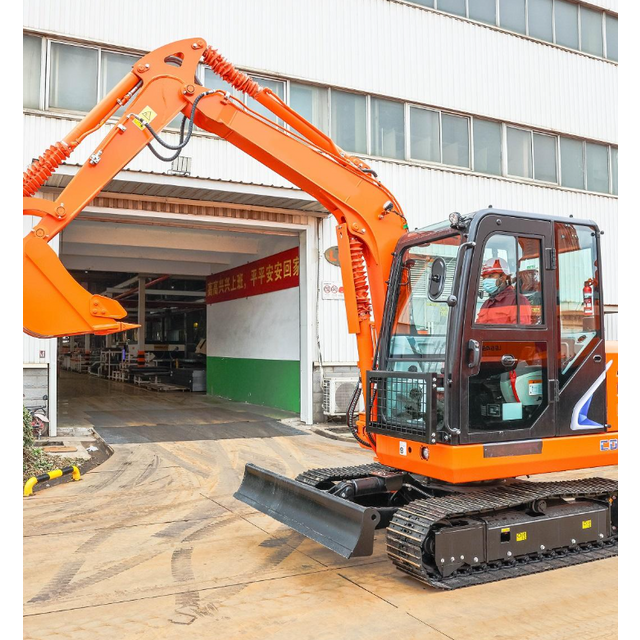

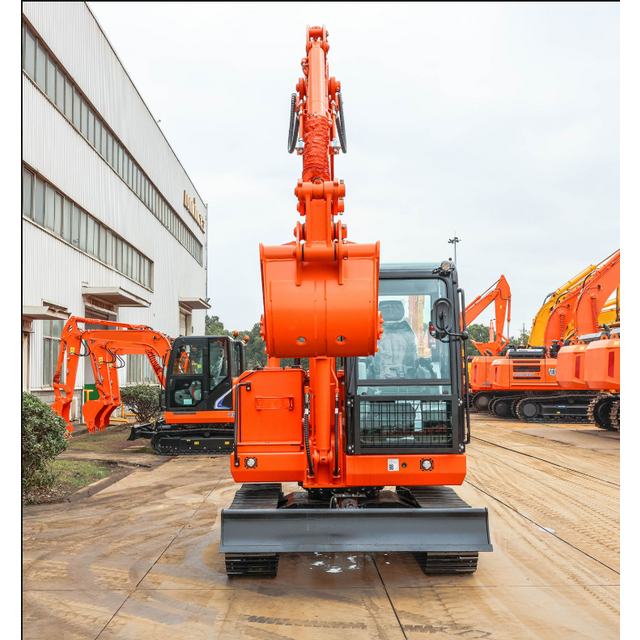

Construction Good Quality Mini Crawler Digger with Cheap Price with Competitive Price for Sale
US$ 18500
1–4 Set
US$ 16000
≥5 Sets
Product Attribute
Usage:
GM excavator, Marine excavator, Mining excavator, Special excavator
Bucket:
Backhoe, Dragline, Grab shovel
Transmission:
Hydraulic-mechanical, Power
Lead Time: 1 – 15 Days
Business Type: Agent, , Online Seller, Retailer, Exporter, Buying Office, Consultant, Importer, Trading Company, Wholesaler, Manufacturer, Distributor
High
Response Rate
24–48 h
Response Time
40 to 59
Employees
Company/product Brochure
5069.78 KB
Visit Store
Follow
Sample Policy
Contact us for information regarding our sample policy
Product information
Products Description
1. Power system:
• Imported Isu zu diesel engine is adopted, which meets the requirements of National III emission regulations and has high reliability
2. Intelligent control:
• The compound movement is smoother and more coordinated, the movement is softer, and the driver's operation is more comfortable
3. Structural parts:
• Comprehensively improve the strength of structural parts, the working device adopts forging and welding structure, and the strength is higher
• High-standard automatic welding technology, higher reliability of structural parts
4. Display:
• Multi-function display, which can realize man-machine communication
• Can monitor engine speed, coolant temperature, oil pressure, fuel level, remote diagnosis
5. Hydraulic system:
• Use hydraulic imported parts to ensure the reliability and stability of the vehicle performance
• Through reasonable matching and independent heat dissipation driven by hydraulic pump, energy saving and fuel saving
6. Multi-operation mode:
• Reload mode with priority on efficiency (H mode)
• Economy mode with priority on fuel consumption (S mode)
• Light load mode for fine operation (L mode)
• Easily switch various working conditionssteels
| Operating weight | 2650 kg |
| Standard bucket Capacity | 0.08 m³ |
| Standard bucket Width | 580 mm |
| Max.Travel speed | 2.6/4.4km/h |
| Max.Swing speed | 10 rpm |
| Grade ability | 30° |
| Ground pressure | 25.1 kPa |
| Max.Traction force | 30.7 KN |
| Boom swing angle (L/R) | 65°/50° |
| Engine model | 3TNV80-PSU |
| Rated power | 14.6 kW/2400 rpm |
| Displacement | 1.267 L |
| Fuel tank | 26 L |
| Max.Flow(total) | 2×28.8+19.2+6.5 L/min |
| Max.Working pressure | 23.5 MPa |
| Max.Pilot pressure | 3.2 Mpa |
| Max.Arm digging force | 14(15.8) kN |
| Max.Bucket digging force | 24 kN |
| Hydraulic oil tank | 41 L |
| Track width | 300 mm |
| Track type | Steel crawler |
| Carrier rollers number | 1( each side) |
| Track rollers number | 4( each side) |
| System vollage | 12 V |
| Battery capacity | 12 V,45 Ah |
